Doughty Swivel Coupler - Atom Clamp, (Cheeseboro)

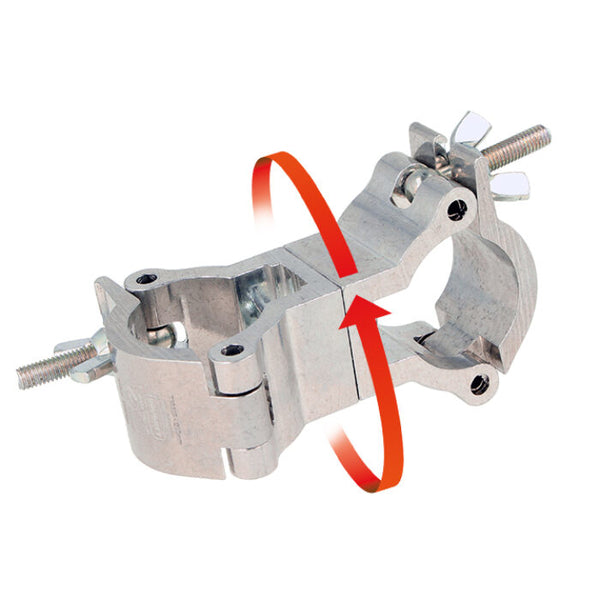

Consists of a pair of high tensile extruded aluminium clamps back to back, designed to swivel and are suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and uses a pair of 30mm wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.


Downloads:

Data Sheet



Key Features:

  • High tensile extruded aluminium construction
  • Swivel design for flexible positioning
  • Compatible with 35mm (1.38″) diameter tubes
  • Working Load Limit (WLL) of 100Kg

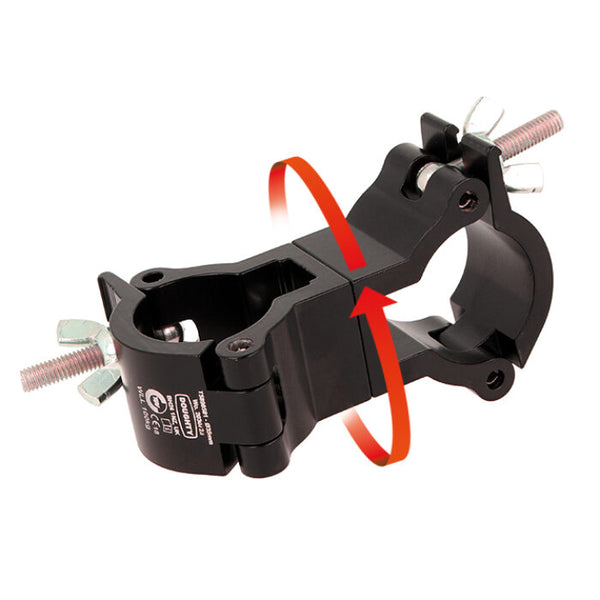

  • Available in polished silver or powder coated black

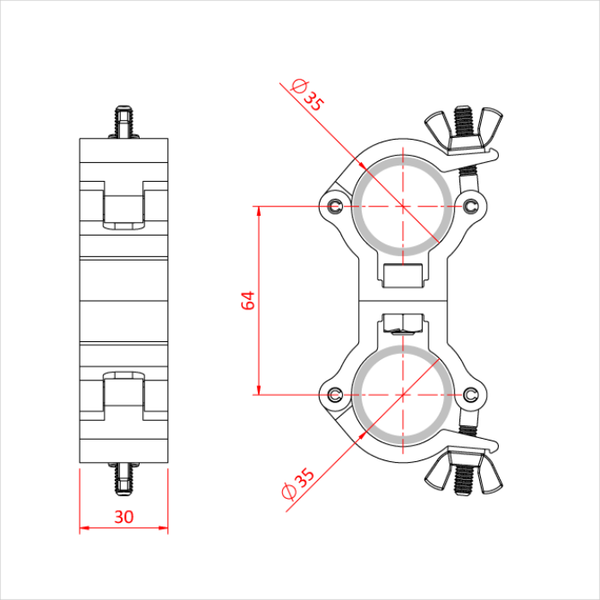

Specifications:

  • WLL: 100Kg
  • Tube Diameter: 35mm (1.38")
  • Clamp Width: 30mm (1.18")
  • Tube Centres: 64mm (2.52")
  • Material: High tensile extruded aluminium


References:

  • Doughty T58905
  • Doughty T5890501
  • Cheeseboro Swivel Clamp
