Doughty 35mm Atom Hanging Clamp

Ningún producto. T58920

COLOUR
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Fecha de entrega estimada
Seleccione el país
Ingrese el código postal correcto
Métodos de pago
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Detalles del producto

Doughty 35mm Atom Hanging Clamp

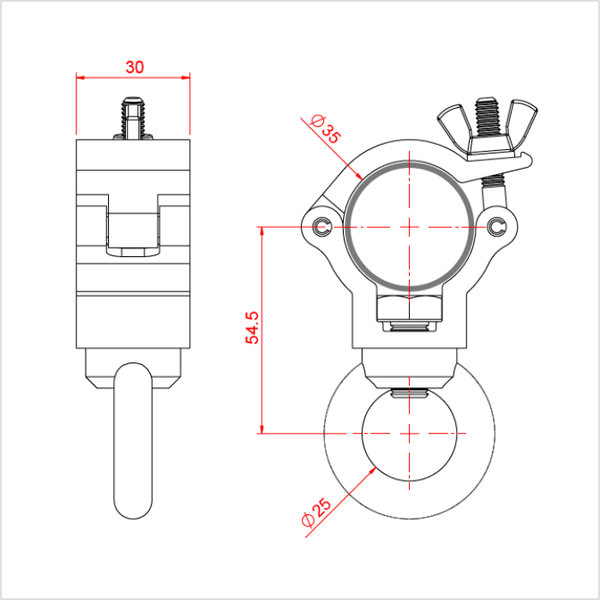

A high tensile extruded aluminium clamp that is suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide factory fitted with an M10 Eye Nut. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.



Downloads:

User Manual




Key Features:

  • High tensile extruded aluminium construction
  • Compatible with 35mm (1.38″) diameter tubes
  • Factory fitted with M10 Eye Nut
  • Ideal for decorative trussing applications

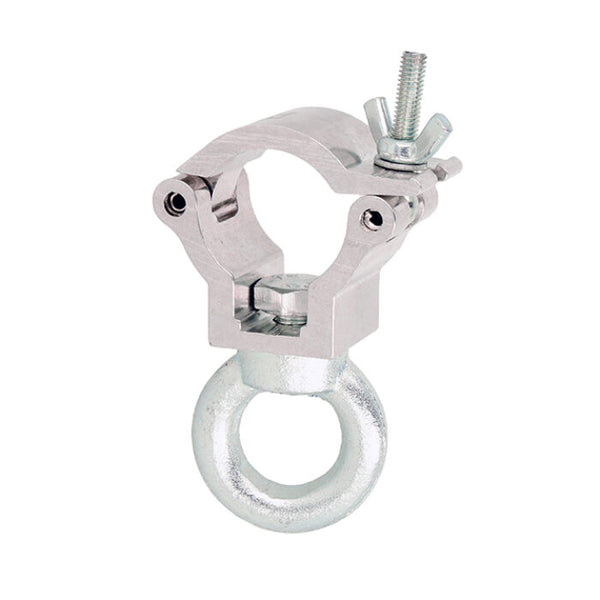

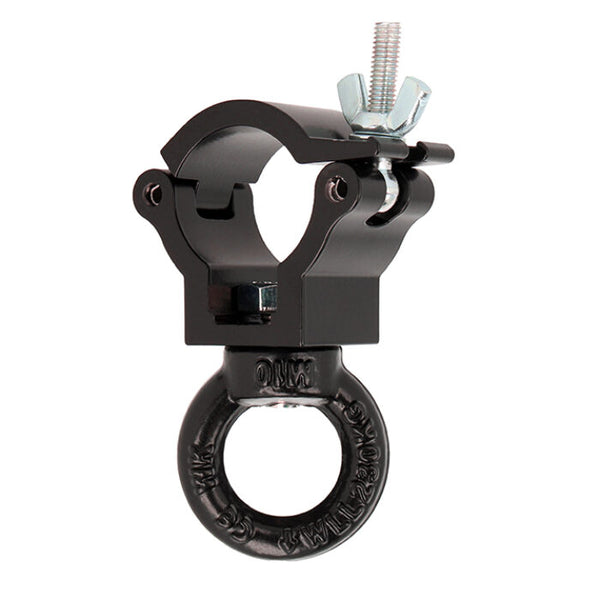

  • Available in polished silver or powder coated black finish




Specifications:

  • WLL: 100Kg
  • Tube Diameter: 35mm (1.38")
  • Clamp Width: 30mm (1.18")
  • Material: High tensile extruded aluminium
  • Fitting: Factory fitted with M10 Eye Nut




References:

  • Doughty Engineering
  • Product Code: T58920 / T5892001
  • Data Sheet
