Doughty 32mm Atom Hanging Clamp
A high tensile extruded aluminium clamp that is suitable for 32mm (1.25″) diameter tubes. It has a WLL of 100Kg and is 30mm wide factory fitted with an M6 Eye Nut. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Suitable for 32mm (1.25″) diameter tubes
- Factory fitted with M6 Eye Nut
- Will not damage decorative truss cords

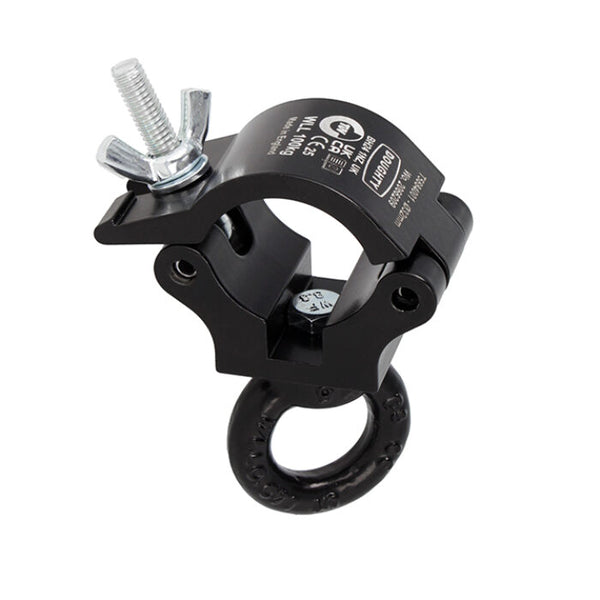

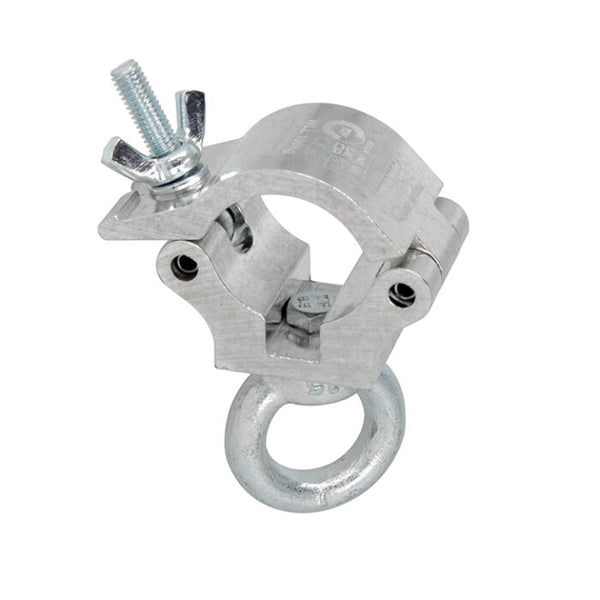

- Available in polished silver or powder coated black

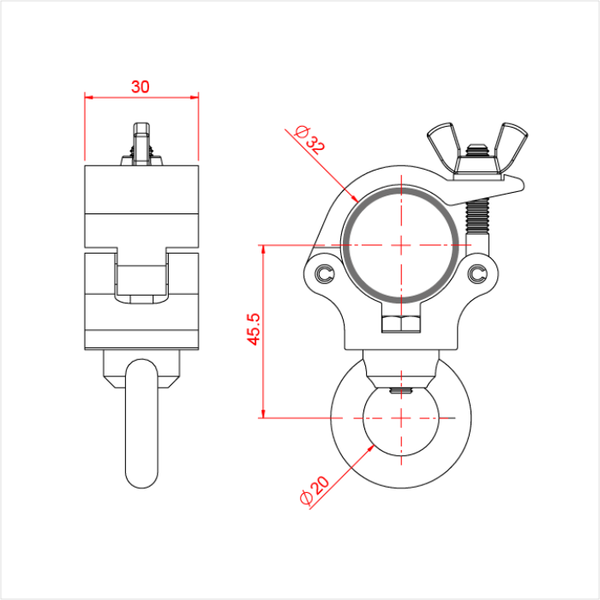

Specifications:
- WLL: 100Kg
- Tube Diameter: 1¼"-32mm
- Clamp Width: 30mm (1.18")
- Material: High tensile extruded aluminium
- Fitting: Factory fitted with M6 Eye Nut
References:
- Doughty Engineering
- Part Number: T58840 / T5884001
- Official Data Sheet
