CMC Mule II Litter Wheel
$1,899.00
CMC Mule II Litter Wheel
$1,899.00
Model:
Without Handles
- All-Terrain Transport: Large ATV-style wheel provides tracking and shock absorption for smoother litter transport across uneven terrain.
- Universal Compatibility: Designed to attach to any type and style of rigid rescue litter.
- Easy Securing: Fast ratchet system uses two straps and two rubberized steel hooks to secure the litter.
- Adjustable Handles: Optional handles provide eight adjustable positions for greater leverage and transport control.
- High Load Capacity: Supports loads up to 500 lb (227 kg) for patient transport and rescue operations.
Ingrese el código postal correcto
CMC Mule II Litter Wheel

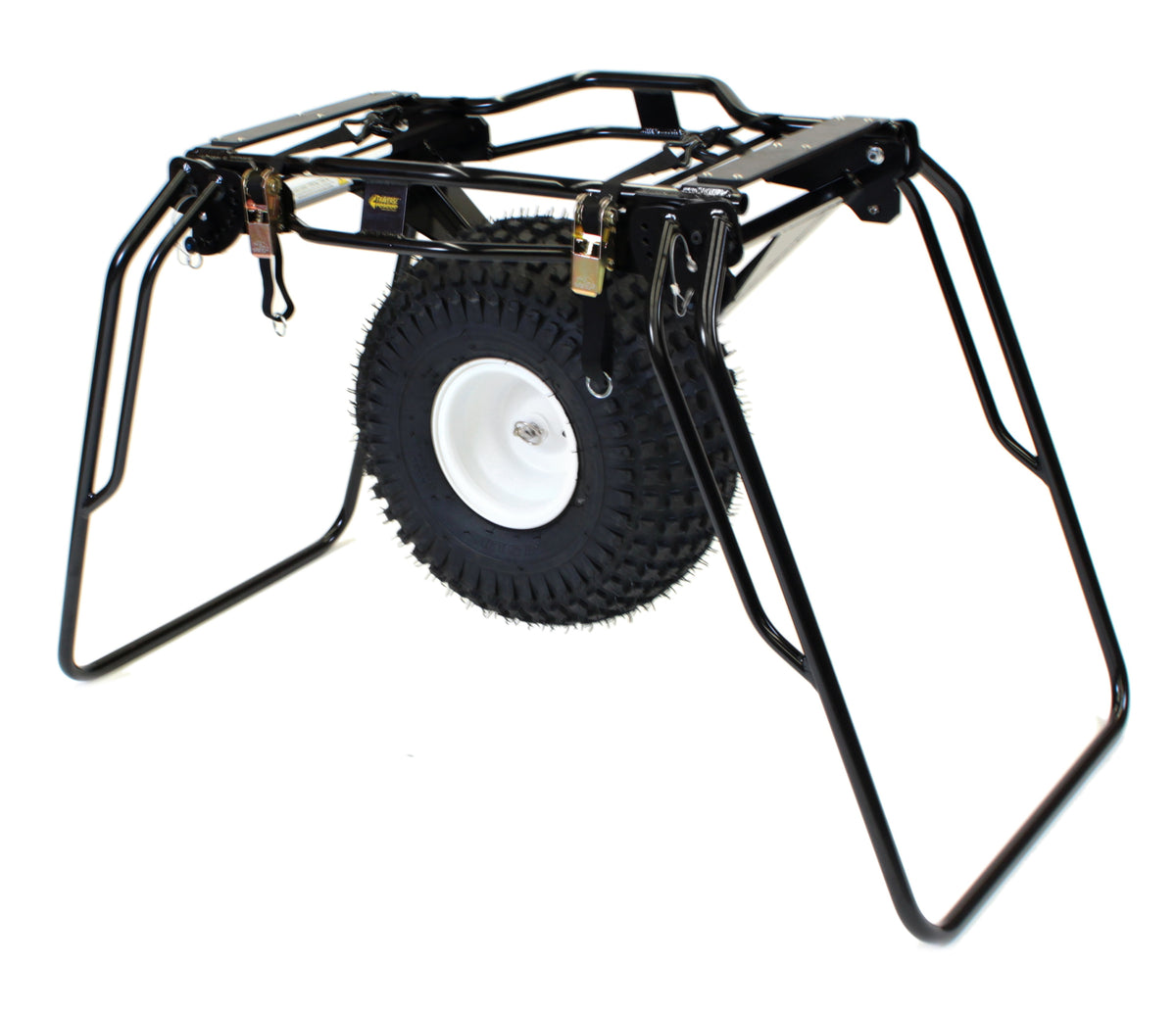

The CMC Mule II Litter Wheel is an all-terrain rescue litter wheel designed to make patient transport easier across rough terrain, narrow trails, and challenging rescue environments. Its universal design is compatible with any type and style of rigid litter, allowing search and rescue teams to convert a rescue litter into a highly maneuverable wheeled transport system. The Mule II can also be used as a stokes basket wheel solution when compatible with the rescue litter configuration.
The large ATV-style wheel provides tracking ability and shock absorption for smoother patient transport, while the single-wheel design offers excellent agility on narrow trails. A fast ratchet securing system attaches the litter with two straps and two rubberized steel hooks, while the optional adjustable handles provide additional leverage and control.
Key Features and Highlights
- All-Terrain Rescue Wheel: Large ATV-style wheel provides tracking and shock absorption for patient transport across rough and uneven terrain.
- Universal Rigid Litter Compatibility: Designed to work with any type and style of rigid rescue litter.
- Stokes Basket Wheel: Provides a wheeled transport option for compatible Stokes basket and rigid litter configurations in rescue environments.
- Single-Wheel Maneuverability: The single-wheel design provides agility and versatility on narrow trails and confined terrain.
- Fast Litter Attachment: A ratchet securing system uses two straps and two rubberized steel hooks to secure the litter.

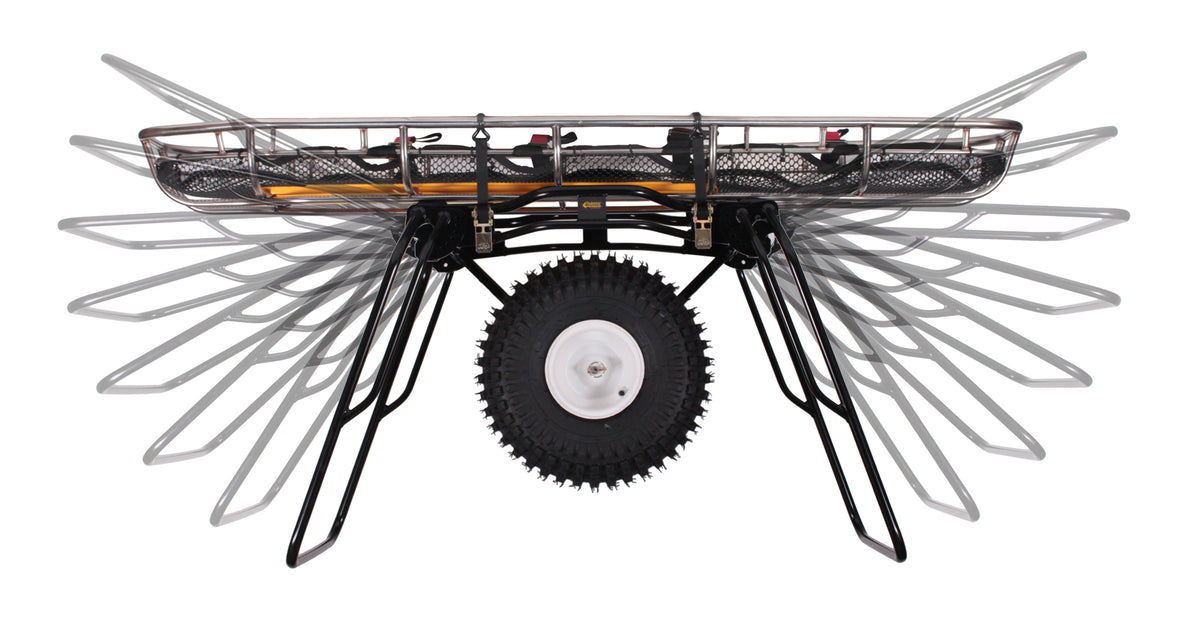

- Optional Adjustable Handles: The With Handles configuration provides eight adjustable positions for additional leverage and control.
- Quick-Release Handles: Wire-lanyarded quick-release pins make it easy to secure the handles in position.

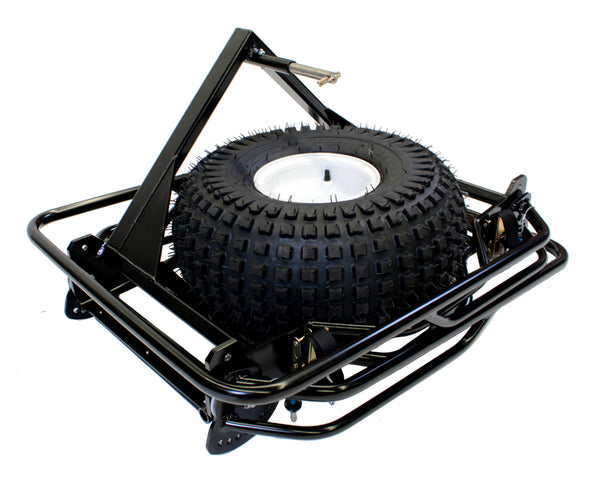

- Compact Storage: The uni-support design allows the wheel to be quickly removed and stored for compact transport.
- 500 lb Load Limit: Supports loads up to 500 lb (227 kg) for loaded litter and patient transport applications.
Who Is This Product For?
Ideal for: search and rescue teams, technical rescue professionals, emergency responders, and other users who need an efficient way to transport a loaded rescue litter across rough terrain or over extended distances.
Designed for Rescue Litter Transport
The Mule II reduces the need to carry a loaded litter over long approaches by adding a large all-terrain wheel to the rescue litter. Its maneuverable single-wheel configuration is particularly useful on narrow trails, uneven ground, and other terrain where a conventional wheeled stretcher may be difficult to operate.
The ATV-style tire is designed to provide tracking and shock absorption, helping create smoother movement while transporting a patient. The fast ratchet system provides a secure connection between the wheel and rigid litter, allowing the system to be deployed quickly during rescue operations.
With or Without Handles
The CMC Mule II is available in two configurations. The Without Handles model weighs 41 lb (18.5 kg), while the With Handles model weighs 51 lb (23 kg). The With Handles configuration adds eight adjustable handle positions for greater leverage and control when moving a rescue litter.
Construction and Technical Details
The Mule II features an aluminum frame, a 3/4 in stainless steel axle, and an AT 22×11-8 tire. The system has a maximum load limit of 500 lb (227 kg) and the tire should be operated at a maximum pressure of 10 psi.
The Without Handles configuration measures 32 × 26 × 27.5 in (81 × 66 × 70 cm) when deployed and 32 × 26 × 18.5 in (81 × 66 × 47 cm) when stored. The With Handles configuration measures 96.5 × 27.5 × 27.5 in (245 × 70 × 70 cm) when deployed and 36.5 × 27.5 × 18.5 in (93 × 70 × 47 cm) when stored.
Explore CMC Equipment
Explore the complete CMC collection for professional rigging, rescue and work-at-height equipment.
For bulk orders, project requirements or pricing, Request a Quote.
Frequently Asked Questions
What is the load capacity of the CMC Mule II Litter Wheel?
Is the Mule II compatible with different rescue litters?
What is the difference between the Mule II models with and without handles?
