Adaptive Technologies Group OSRV3-1800 Off-Set Swivel Ring

Adaptive Technologies Group OSRV3-1800 Off-Set Swivel Anchor

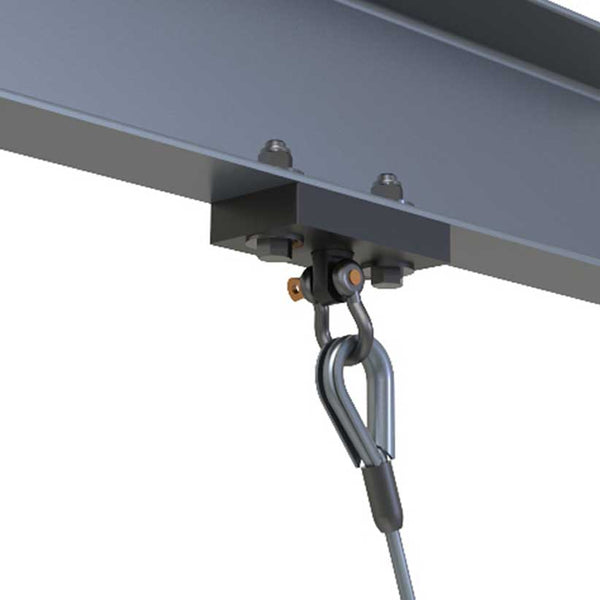

The Adaptive Technologies Group OSRV3-1800 off-set anchor puts hang points where you need them and avoids side loads. The fitting rotates 360 degrees and self-aligns from the overhead structure toward the suspended load.

It is rated 1,800 lb (818 kg) at 0 and 20 degrees, 784 lb at 45 degrees and 595 lb at 90 degrees, at a 5:1 design factor, and comes with a 1/2 in shackle.

Key Features and Highlights

• Self-aligning: Rotates 360 degrees toward the load.
• 1,800 lb (818 kg): At 0 and 20 degrees, 5:1.
• Angle ratings: 784 lb (356 kg) at 45, 595 lb (270 kg) at 90 degrees.
• Shackle included: 1/2 in screw pin anchor shackle.
• Permanent install: Installs easily to the superstructure.

What's in the Box

• 1 swivel anchor
• 1 shackle, 1/2 in

Who Is This Product For?

Ideal for: Riggers creating overhead hang points on structure.

Important: Always install safety cables.

Specifications

• Part Number: OSRV3-1800
• WLL (Working Load Limit): 1,800 lb (818 kg) at 0 and 20 degrees; 784 lb (356 kg) at 45 degrees; 595 lb (270 kg) at 90 degrees
• Design Factor: 5:1
• Rotation: 360 degrees
• Material: Alloy steel
• Included: 1/2 in shackle
