Adaptive Technologies Group MultiMount MM-019-BT 60lb Speaker Mount with Square Mounting Pattern

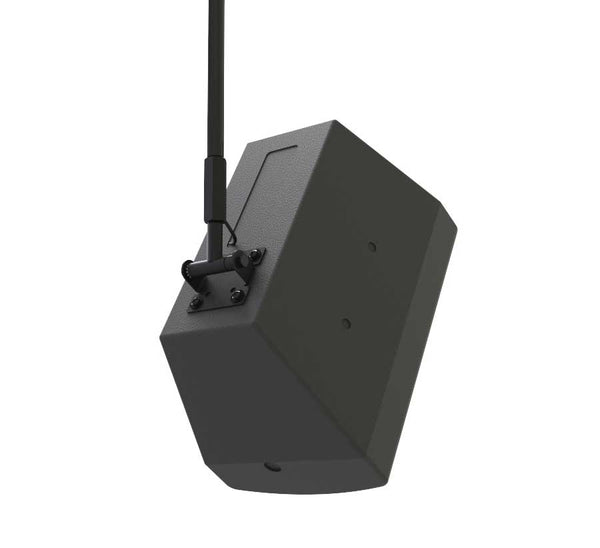

Adaptive Technologies Group MultiMount MM-019-BT Pan and Tilt Ceiling Speaker Mount

The Adaptive Technologies Group MM-019-BT supports and aims cinema surround speakers with square four-point mounting patterns of 2.6 x 2.6 in or 1.6 x 1.6 in from ceiling mounts and strut, using ceiling plates, pipe extensions and strut adapters.

It gives up to 360 degrees of pan and 180 degrees of tilt and is rated 75 lb (34.1 kg) at a 5:1 design factor.

Key Features and Highlights

• 75 lb (34.1 kg) WLL: 5:1 design factor.
• Pan 360, tilt 180 degrees: Independent, no-drift controls.
• Square patterns: 2.6 x 2.6 in and 1.6 x 1.6 in.
• Single-person install: Infinite locking adjustments.
• Overhead options: MP-500NPT-CP plate, pipe extensions and strut adapters.

Who Is This Product For?

Ideal for: Cinemas and auditoriums hanging surround speakers overhead.

Important: Ceiling plate and pipe sold separately. Always install safety cables.

Specifications

• Part Number: MM-019-BT
• WLL (Working Load Limit): 75 lb (34.1 kg) max
• Design Factor: 5:1
• Pan: 360 degrees
• Tilt: 180 degrees
• Mounting Patterns: 2.6 x 2.6 in, 1.6 x 1.6 in
• Material: Structural steel alloy, black powder coat
