Adaptive Technologies Group Beam Clamp – Gimbaled Hang Point

Adaptive Technologies Group Beam Clamp, Gimbaled Hang Point

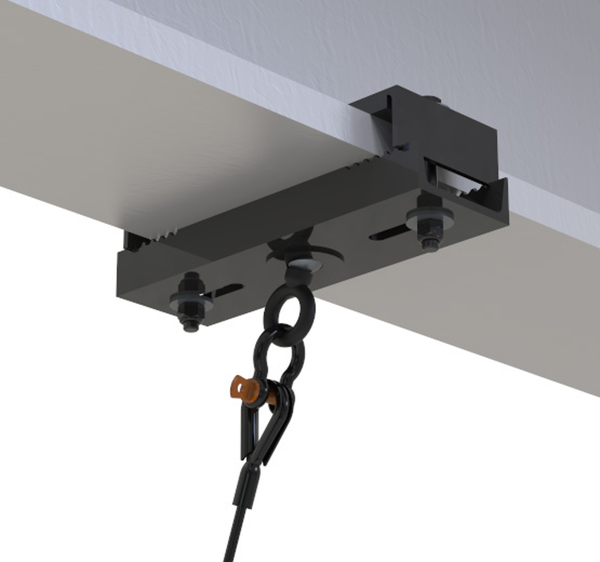

The Adaptive Technologies Group Gimbaled Hang Point Beam Clamp mounts flush under a steel I-beam and carries a gimbaled swivel eye that turns 360 degrees and takes up to 20 degrees of off-axis loading at full rating. Two models fit 7 to 12 in (BC7-12-GE) and 12 to 18 in (BC12-18-GE) flanges.

It is rated 2,000 lb (908 kg) vertical and at 20 degrees, and 1,200 lb (545 kg) at 45 degrees, with non-loosening fasteners.

Key Features and Highlights

• Gimbaled swivel eye: Swivels 360 degrees and keeps full rating up to 20 degrees off axis.
• 2,000 lb (908 kg) vertical WLL: 1,200 lb (545 kg) at 45 degrees; do not exceed 65 degrees.
• Two sizes: 7 to 12 in and 12 to 18 in (305 to 457 mm) flanges.
• Thick flanges: Accommodates thicker flanges than standard channel clamps.
• Non-loosening fasteners: Alloy steel construction.

What's in the Box

• 1 gimbaled beam clamp
• 1 hardware kit

Who Is This Product For?

Ideal for: Installers bridling heavier loads from I-beams with wire rope, rigging chain or span sets.

Important: Do not exceed 65 degrees off vertical. Always install safety cables.

Specifications

• Part Numbers: BC7-12-GE, BC12-18-GE
• Beam Flange Width: 7 to 12 in (BC7-12-GE); 12 to 18 in, 305 to 457 mm (BC12-18-GE)
• Vertical WLL: 2,000 lb (908 kg)
• 20 Degree WLL: 2,000 lb (908 kg)
• 45 Degree WLL: 1,200 lb (545 kg)
• Max Angle: 65 degrees
• Swivel: 360 degrees
