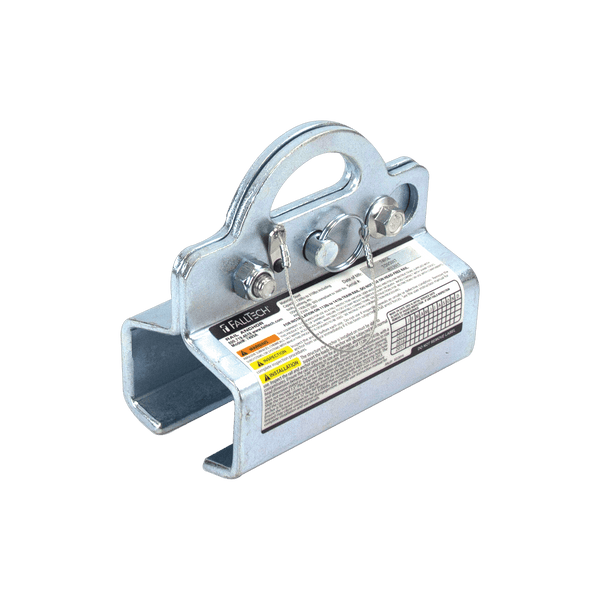

Rail Anchor
FEATURES
- Rail anchor is designed for temporary and reusable installation onto existing train rail
- Anchor fits rails ranging from 112 lb to 141 lb (approx. 2-5/8" to 3").
- Features interlocking twin plate design with detent pin for secure rail attachment
- Rail Anchor provides user-trailing mobility on elevated train rail and trestles
- Meets OSHA 1926.502 regulations
MATERIAL SPECIFICATIONS
Interlocking Plates: Plated carbon steel
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
COMPLIANT WITH:
OSHA 1926.502 and 1910.66
