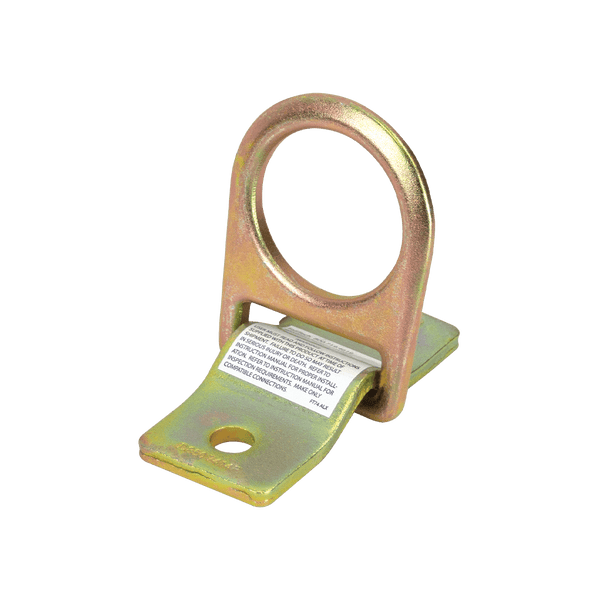

Bolt-on D-ring Anchor with Installation Plate

FEATURES

  • Features 2" x 4-1/2" alloy steel anchoring plate and D-ring
  • 1/2" bolt holes require user-supplied fasteners for fixed position installation.
  • Complies with ANSI Z359.18-2017

MATERIAL  SPECIFICATIONS

Installation Plate:                Plated alloy steel
D-ring:                                   Plated alloy; 5,000 lb min. static strength

PERFORMANCE  SPECIFICATIONS

Static Strength:                       5,000 lb min.
ANSI User Capacity:               130 to 310 lb max.
OSHA User Capacity:              130 to 425 lb max.

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT WITH:

ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
