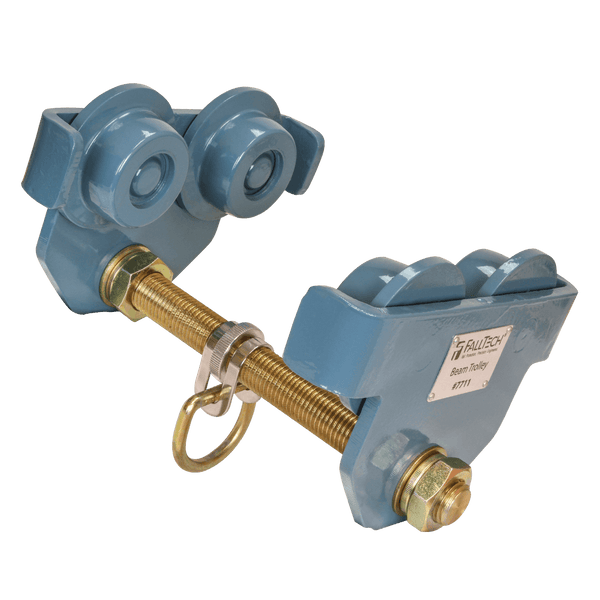

8" All-steel Beam Trolley Anchor

FEATURES

  • Features single trolley adjustment and threaded steel crossbar
  • Includes steel wheels, side plates and adjustment rings.
  • Fits beam flanges from 3" to 8" wide and up to 2-1/4" thick
  • For temporary or permanent installation on overhead horizontal I-beams
  • Complies with ANSI Z359.18-2017

MATERIAL  SPECIFICATIONS

D-ring:                                 Plated alloy steel; 5,000 lb min. static strength
Crossbar:                            Plated carbon steel
Wheel Plates:                     Powder coated carbon steel

PERFORMANCE  SPECIFICATIONS

Static Strength:                                   5,000 lb min.
ANSI User Capacity:                          130 to 310 lb max.
OSHA User Capacity:                         130 to 425 lb max.

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT  WITH:

ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
