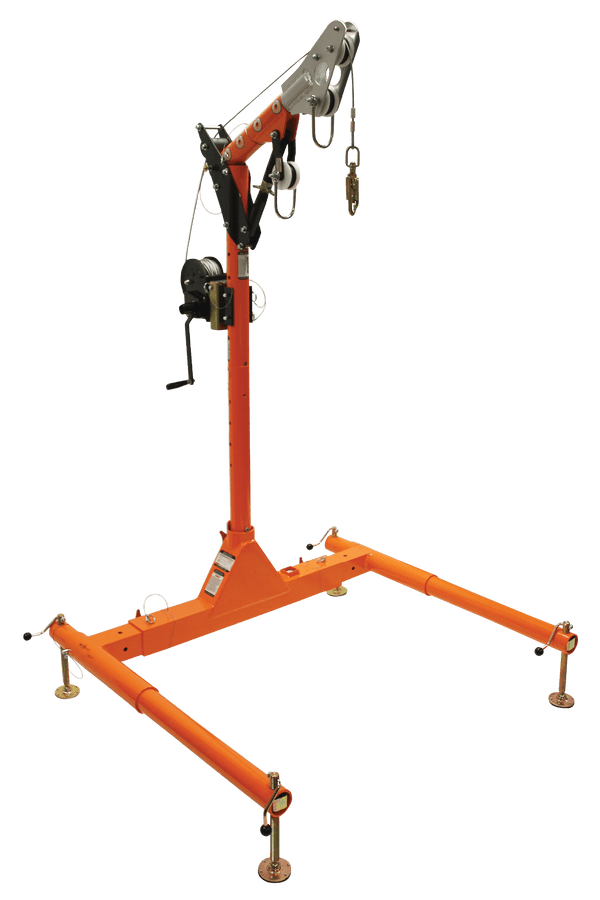

5pc Confined Space Davit System with 12" to 29" Offset Davit Arm and Winch
FEATURES
- Davit arm adjusts from 12" to 29" offset reach to keep lifelines centered over access locations
- Base width adjusts from 38" to 65" and fits a wide range of openings.
- 5pc system features 33" lower mast extension and device receiver bracket
- Includes 60' galvanized cable Personnel Winch
- Offset davit arm features two pulleys and secondary 5,000 lb anchor point
- 3pc base includes integral bullseye level and tool-free height adjustment
- Lightweight powder coated aluminum combined with alloy steel for longer life and durability
- Davit System meets OSHA 1926.502 and 1910.66 regulations
- Personnel Winch complies with ANSI Z359.4-2013
MATERIAL SPECIFICATIONS
Davit System: Powder coated 6061 aluminum and plated steel
PERFORMANCE SPECIFICATIONS
Rescue Static Strength: 5,000 lb min.
Entry/Egress Static Strength: 1,800 lb min.
Rescue User Capacity: 2 users, 310 lb max. for each person
Entry/Egress Capacity: 1 user, 310 lb max.
DOWNLOADS
COMPLIANT WITH:
OSHA 1926.502 and 1910.66
