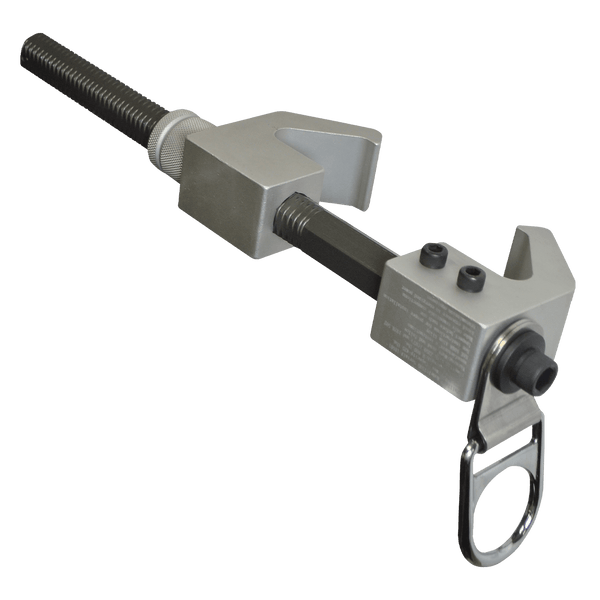

24 ½" Vertical Beam Anchor for Fixed Locations
24 ½" Vertical Beam Anchor for Fixed Locations $367.00
  • Vertical Beam Anchor for Fixed Locations

24 ½" Vertical Beam Anchor for Fixed Locations

FallTech |
SKU: 7536
$367.00
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Please select country
Please enter correct zip code

You may also like

Test heading

24 ½" Vertical Beam Anchor for Fixed Locations

FEATURES

  • Features threaded aluminum crossbar and jaws with knurled rings for fine adjustment
  • Single-jaw adjustment fits flanges from 7-3/4" to 24-1/2" wide and up to 2-1/4" thick.
  • For permanent installation on vertical and horizontal I-beams
  • Complies with ANSI Z359.18-2017

MATERIAL  SPECIFICATIONS

D-ring:                                         Plated alloy steel; 5,000 lb min. static strength
Crossbar:                                   Aluminum alloy
Clamp Jaws:                             Aluminum alloy

PERFORMANCE  SPECIFICATIONS

Static Strength:                                      5,000 lb min.
ANSI User Capacity:                             130 to 310 lb max.
OSHA User Capacity:                            130 to 425 lb max.

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT  WITH:

ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
