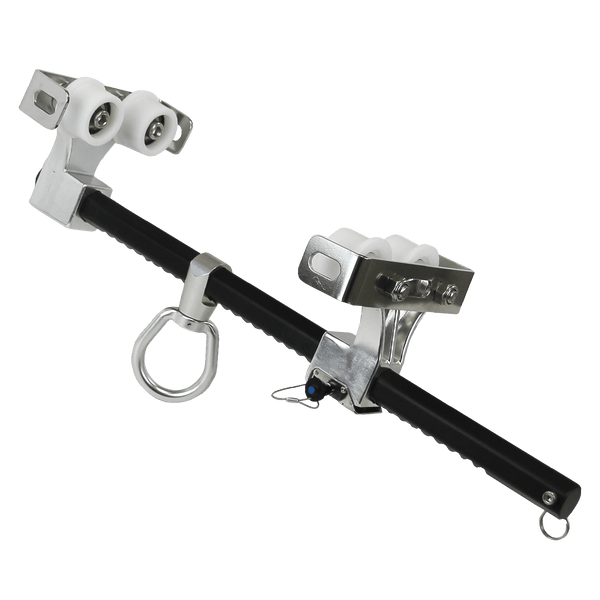

18" Aluminum Beam Trolley Anchor

FEATURES

  • Features single trolley adjustment with aluminum crossbar, swiveling D-ring and wheel plates
  • Includes high-density Nylacast wheels suitable for some food-rated installations.
  • Fits beam flanges from 4" to 18" wide and up to 1-3/4" thick
  • For temporary or permanent installation on overhead horizontal I-beams
  • Complies with ANSI Z359.18-2017

MATERIAL  SPECIFICATIONS

D-ring:                                Aluminum alloy; 5,000 lb min. static strength
Crossbar:                          Aluminum alloy
Wheel Plates:                   Aluminum alloy

PERFORMANCE  SPECIFICATIONS

Static Strength:                                 5,000 lb min.
ANSI User Capacity:                         130 to 310 lb max.
OSHA User Capacity:                        130 to 425 lb max.

DOWNLOADS

Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure

COMPLIANT  WITH:

ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
