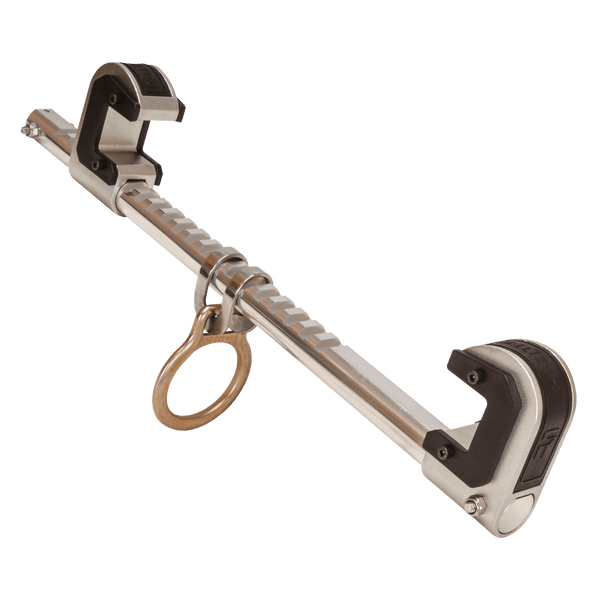

14 ½" Trailing Beam Anchor with Single-clamp Adjustment

FEATURES

  • Features aluminum crossbar and steel clamping jaws with nylon slider pads
  • Fits beam flanges from 3" to 14-1/2" wide and up to 1-1/4" thick.
  • Single adjusting jaw includes concealed locking latch
  • Alloy steel D-ring slides with jaw adjustment
  • For temporary mobile use on horizontal I-beams
  • Complies with ANSI Z359.18-2017

MATERIAL  SPECIFICATIONS

D-ring:                                       Plated alloy steel; 5,000 lb min. static strength
Crossbar:                                  Aluminum alloy
Clamp Jaws:                            Plated alloy steel

PERFORMANCE  SPECIFICATIONS

Static Strength:                                     5,000 lb min.
ANSI User Capacity:                            130 to 310 lb max.
OSHA User Capacity:                           130 to 425 lb max.

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT  WITH:

ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
