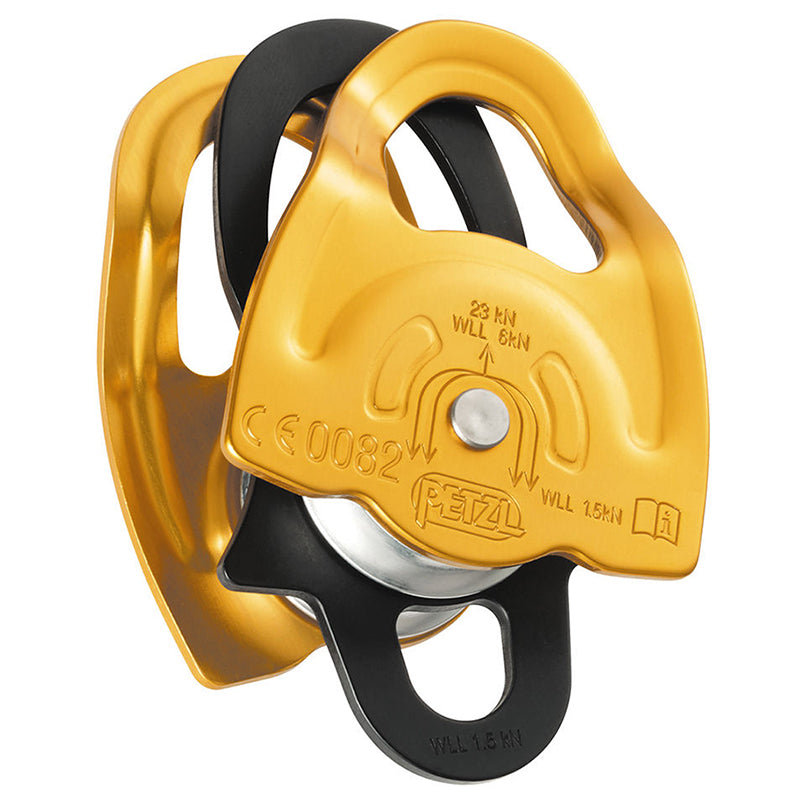

Petzl GEMINI Double Pulley

Petzl GEMINI Double Pulley

The Petzl GEMINI is a compact Double Pulley that sets up progress capture systems of high mechanical advantage. Equipped with parallel mounted sheaves and an auxiliary attachment point for creating even the most complex of hauling systems. The sheaves are also mounted on sealed ball bearings for excellent efficiency. The GEMINI is compatible with ropes of minimum diameter 0.28'' and maximum diameter 0.43''.

For any inquiries please contact us via Chat.

SPECIFICATIONS

• Material(s): Aluminum Side Plates, Aluminum Sheave
• Weight: 0.3 lbs
• Min. Rope Diameter: 0.28''
• Max. Rope Diameter: 0.43''
• Sheave Type: Sealed Ball Bearings
• Sheave Diameter: 0.98''
• Working Load (One Rope Strand): 1.5 kN
• Maximum Working Load: 2 x 1.5 kN x 2 = 6kN
• Breaking Strength: 23kN
• Efficiency: 91%
• Certification(s): CE EN 12278, NFPA 1983 Technical Use

FEATURES

• Special side plates designed for use with a Prusik friction hitch in lightweight progress capture systems
• Parallel mounted sheaves and auxiliary attachment point for creating different types of hauling systems, including the most complex
• Sheave mounted on sealed ball bearings for excellent efficiency
• Lightweight (aluminum side plates and sheaves)

RESOURCES

Technical Notice

Declaration of Conformity

PPE Inspection Procedure
