OZ Lifting Premium Lever Hoist

OZ Lifting Premium Lever Hoist

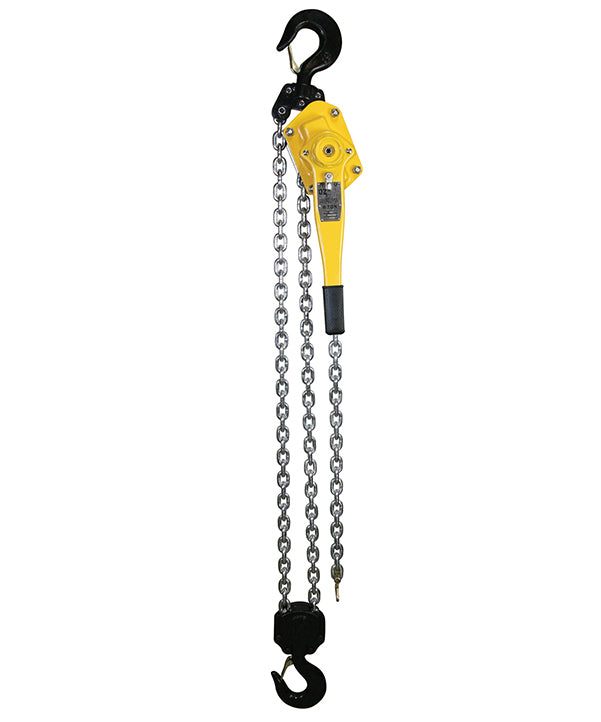

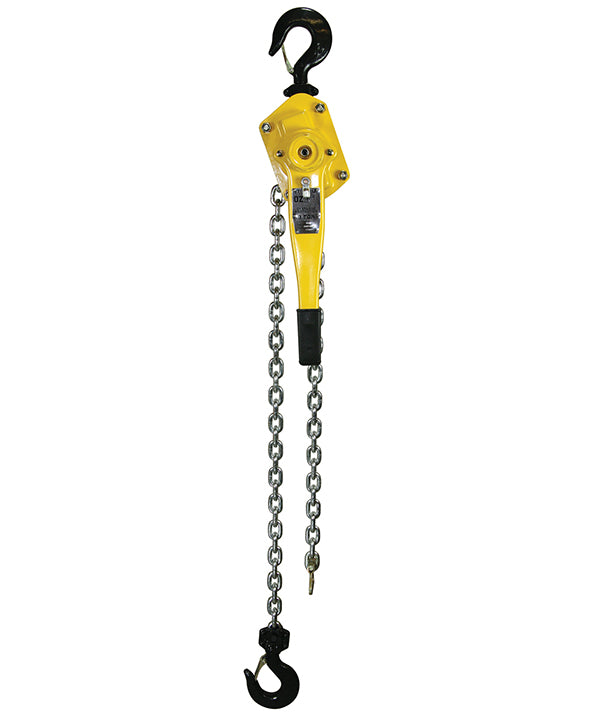

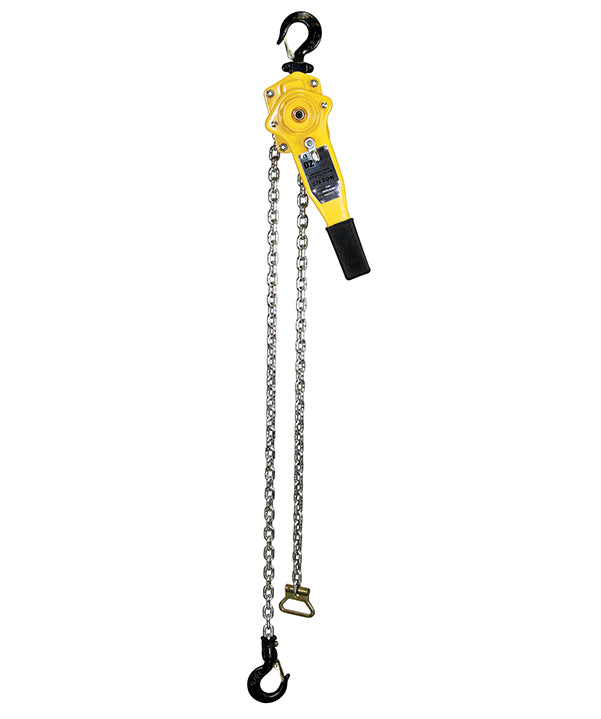

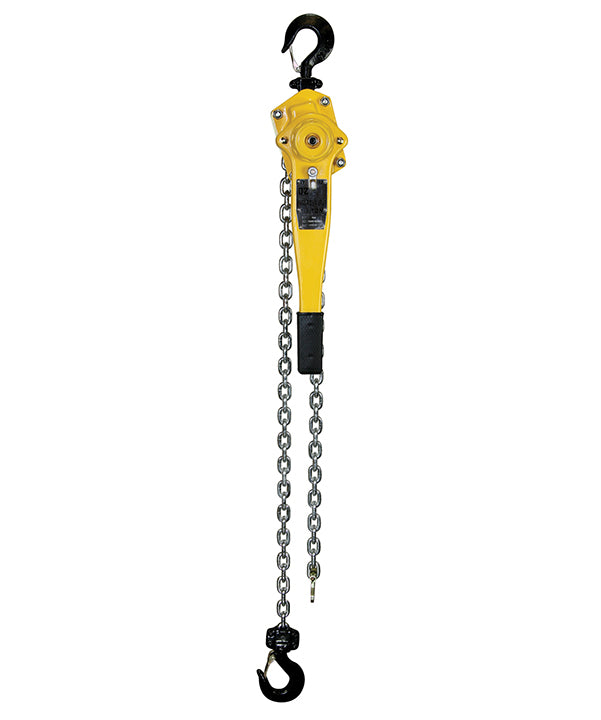

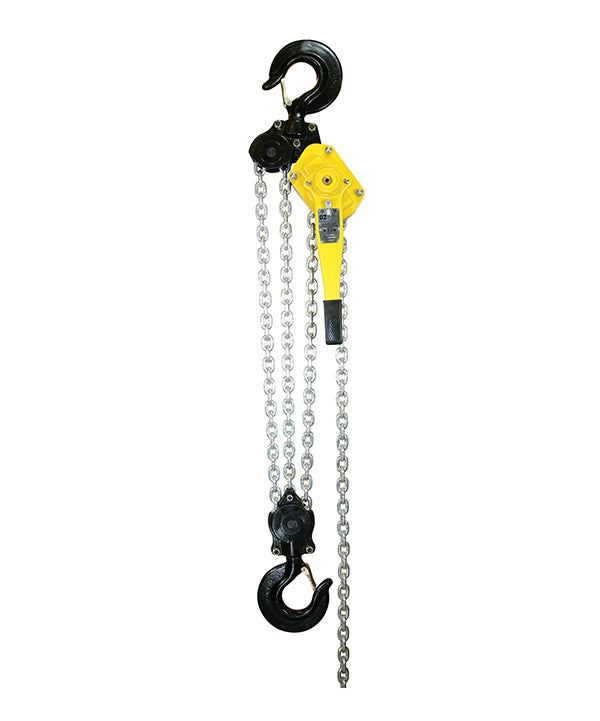

The OZ Premium Lever Hoist is a durable and versatile lever hoist that can be used for both lifting and pulling. The double reduction gearing minimizes lifting effort and the hoist can be operated in tight spaces thanks to the 360-degree handle rotation. Enclosed brake system, gearing systems, fully enclosed lift wheel and a sealed roller bearing keep the hoist protected from debris and contamination to ensure smooth operation over time. Standard overload protection activates at approximately 150% of the rated load to help prevent severe overloading and damage. The free wheel feature allows you to disengage the gearing when not under load by positioning the switch to the center position for quick chain adjustment. Available capacities: 0.75 t, 1.5 t, 3 t, 6 t and 9 t.

Features

Standard overload protection activates at approx. 150% of the rated load. The free wheel feature enables quick chain adjustment by disengaging the gearing when not under load. The hoist can be used to lift or pull loads and the double reduction gearing minimizes lifting effort. A 360-degree handle rotation supports operation in tight spaces. All-steel construction with durable powder coat finish. Enclosed Weston style brake system stays clean and dry. Enclosed gearing and a fully enclosed lift wheel protect from debris and contamination while maintaining smooth operation and distributing the load over more chain links. Sealed roller bearings ensure smooth operation and maintenance-free lubrication. Steel handle with rubber grip. Forged alloy steel hooks with 360° swivel and cast steel safety latch with bolt-and-lock nut connection. 100% load tested zinc-plated chain and stainless-steel, corrosion-resistant ID tags.

Standards – CE, ASME B30.21, AS1418.2
