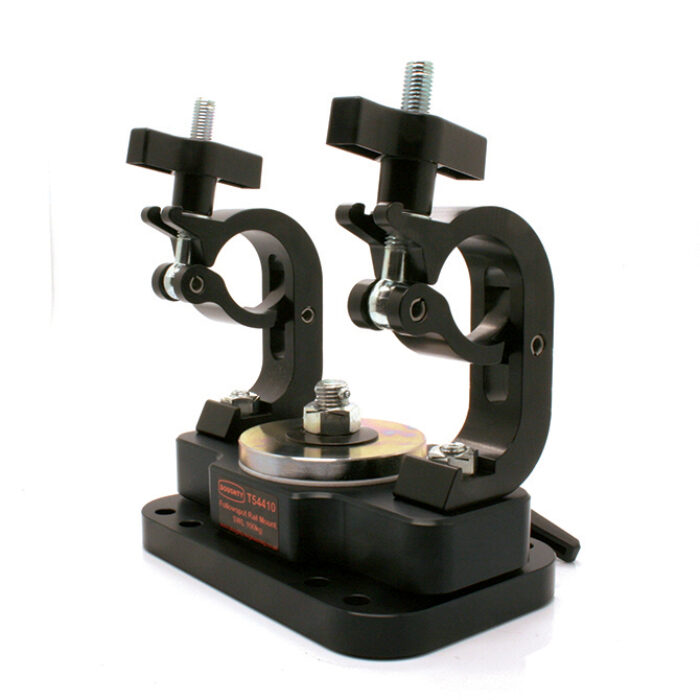

Doughty Followspot Rail Mount

Doughty Followspot Rail Mount

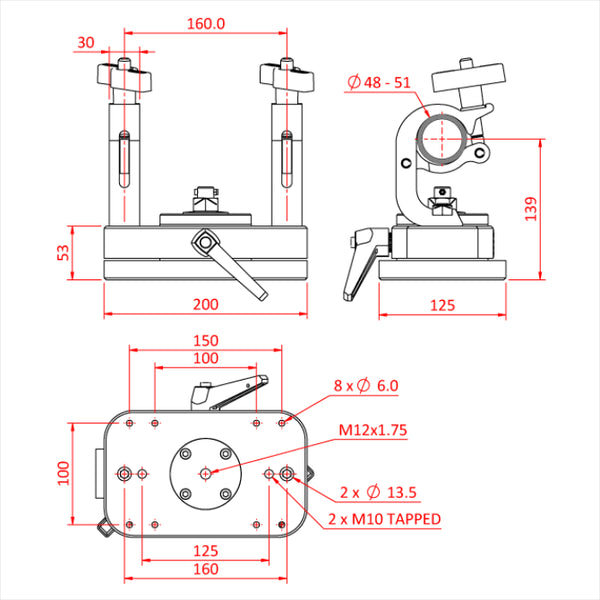

The heavy duty followspot mount is designed to allow a followspot to suspend from a 48mm to 51mm (1.89″ – 2.01″) barrel.

Ideal for areas where there is no room for a stand but there is a position to rig from above.

Using two trigger clamps it allows for 360 degrees of silky smooth rotation and has an easy to use large adjustable lock off knob.

Downloads:

Data Sheet

Key Features:

• Heavy duty construction for professional use
• Compatible with 48mm to 51mm (1.89″ – 2.01″) barrel diameters
• Ideal for overhead rigging where floor space is limited
• 360 degrees of smooth rotation via dual trigger clamps
• Large adjustable lock off knob for easy and secure positioning

Specifications:

• Mount Type: Followspot Rail Mount
• Compatible Barrel Diameter: 48mm to 51mm (1.89″ – 2.01″)
• Rotation: 360 degrees smooth rotation
• Lock Mechanism: Large adjustable lock off knob
• WLL: 50Kg
