Doughty Twenty Clamp (TÜV Approved)

• DESCRIPTION
• SPECIFICATIONS
• MANUFACTURER

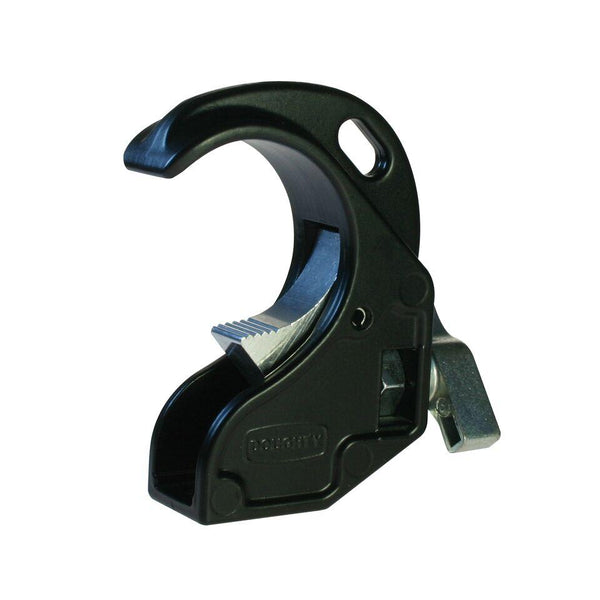

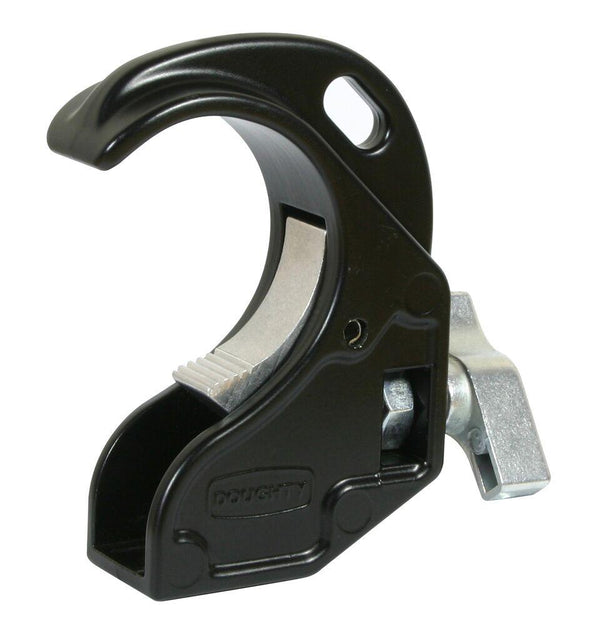

Doughty Twenty Clamp

The Doughty Twenty Clamp is the latest addition to Doughty's range of aluminum clamps. Manufactured from pressure die-cast aluminum, this Doughty truss clamp has been designed to eliminate truss damage usually associated with steel hook clamps.

This stylish compact clamp has a WLL of 44 lbs and can be secured to tubes of 2'' diameter with just two turns of the Doughty knob. As with all major Doughty products, the Twenty Clamp carries full CE marking and TÜV approval.

For any inquiries, please contact us via chat.

Spec Sheet - User Manual

SPECIFICATIONS

• TÜV Approved
• SWL: 44 lbs

• Tube Diameter: 2''

• Width: 1.1''

• Overall Height: 3.9''

• Fixing: M10 or M12 Captive Bolt and Nut (M10 supplied)

• Weight: 0.62 lbs

• Material: Aluminum

• Finish: Powder Painted


Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls.

Quality and safety are key issues for Doughty. As a member of ESTA (Entertainment Services and Technology Association) and PLASA (Professional Light and Sound Association), Doughty always adheres strictly to the standards of trading expected
