Doughty Super Lightweight Beamer Clamp

Doughty Super Lightweight Beamer Clamp

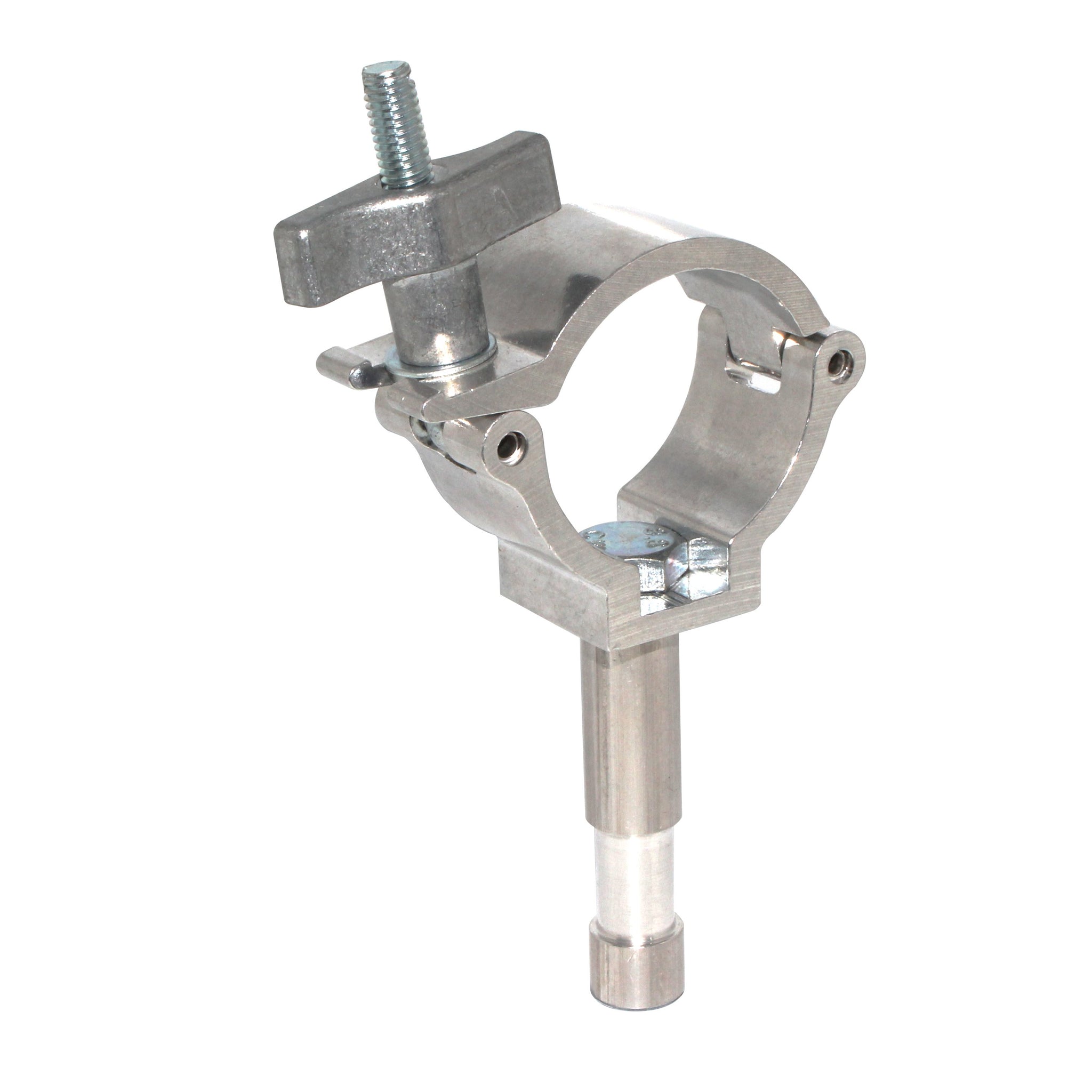

This Super Lightweight Doughty Beamer Clamp with a slimline profile is supplied with a 0.6'' diameter Lighting Pin, enabling users to create fixings suited to their own individual requirements.

Manufactured from high tensile Aluminum Extrusion, this truss clamp is able to attach to round tubes or truss chords and suspend luminaries or other equipment in the theatre, film, TV and photographic industries. Available in Black or Polished Aluminum.

For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Super lightweight clamp with slimline profile
• Supplied with 0.6'' diameter Lighting Pin
• Manufactured from high tensile Aluminum Extrusion
• Suitable for round tubes or truss chords in entertainment applications
• Available in Black or Polished Aluminum finish

Specifications:

• SWL: 220 lbs
• Tube Diameters: 1.9'' - 2''
• Width: 1.18''
• Fixings: 0.6 lbs diameter spigot with 2.8'' height
• Weight: 0.6 lbs

References:

• Material: Aluminum
• Finish: Black or Polished Aluminum
• Manufacturer: Doughty Engineering (UK-based)

Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. Quality and safety are key issues for Doughty. As a member of ESTA (Entertainment Services and Technology Association) and PLASA (Professional Light and Sound Association), Doughty always adheres strictly to the standards of trading expected.
