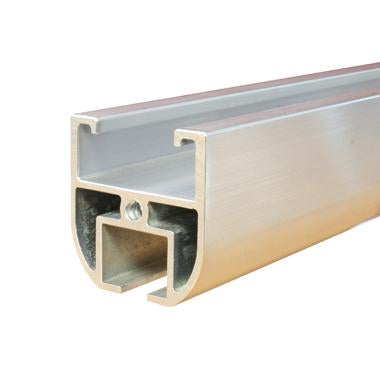

Theater Curtain Track - Straight Section
Doughty rail is an Extruded Aluminium Walk Along Rail Curtain System, perfectly meets the needs of smaller studios, drama studios, black box theatres, churches, schools, village halls, architectural and residential projects and even pubs.
The rail system has been designed to have a low profile with compact ball raced curtain runners. The top suspension channel is dimensioned to work with 'Unistrut' nuts to ensure quick and easy installation. Different brackets are also available for suspending the rail in most situations.
It features a unique joint pin system which aids assembly and joint alignment. This straight theatre curtain track is available in three standard lengths and in two finishes, natural aluminum, and black.
To make your rail curtain system more flexible, the straight theatre curtain track can be cut to length on-site and there is a drilling jig available to easily re-drill the joint holes accurately.
"Doughty Rail is an innovative, semi professional product that will perfectly meet the requirements of users who do not need to invest in the heavy duty products required by big theatres and large scale entertainment venues," said Mark Chorley, design engineer at Doughty
For any inquiries, please contact us via chat.
FEATURES & BENEFITS:
- Single swipe or overlap curtains
- Walkalong system only: If a line-operated curtain track system is needed, Doughty Six Track Kit- Line Operated System will be a wise choice.
- Low profile extruded aluminum section: A great solution to venues where space is tight.
- Wide range of brackets for flexible applications: Doughty rail can be mounted in various locations with the brackets to fit the various venue design.
SPECIFICATIONS:
- Length and Weight: 3.3'(6.4 lbs), 6.6'(9.5 lbs), 9.8'(12.8 lbs)
- Dimension: 1.7'' x 1.6''
- Maximum load between supports: 132.3 lbs
- Recommended distance between runners: 11.8''
- Ball raced runner WLL: 13.2 lbs per each
- Material: Aluminum
- Finish: Natural Aluminium and Black
DOUGHTY RAIL SYSTEM DIAGRAM:
For the detailed installation, please always refer to the user manual. Installation should only be carried out by a competent person who is familiar with track/rail installations. The installer must make sure the structure of the building and method of installation is suitable to hold Doughty Rail and loads safely.
A) The straight rail in the whole piece
B) The joint straight rail
Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls.
Quality and safety are key issues for Doughty. As a member of ESTA (Entertainment Services and Technology Association) and PLASA (Professional Light and Sound Association), Doughty always adheres strictly to the standards of trading expected
