Product details

Doughty Theatre Curtain Track (Six Track) Support Brackets


The Doughty Theatre Curtain Track (Six Track) Support Brackets are engineered to securely suspend curtain track systems in theatrical and stage environments. Designed for use with Six Track systems, these brackets are available in two distinct options to address varying installation requirements.

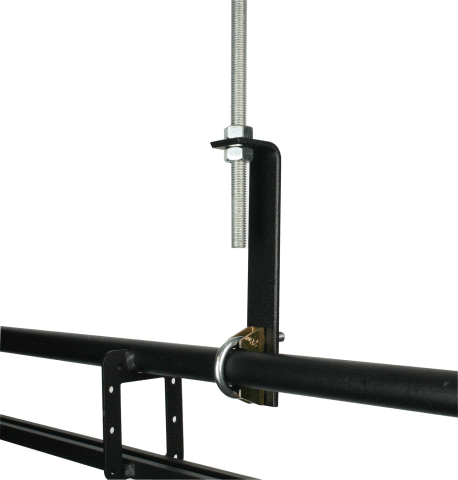

Option 1: The Adjustable Support Bracket (T63750) allows for up to 100mm of vertical adjustment when used in conjunction with M12 Studding and two Lock Nuts, offering flexibility during installation.

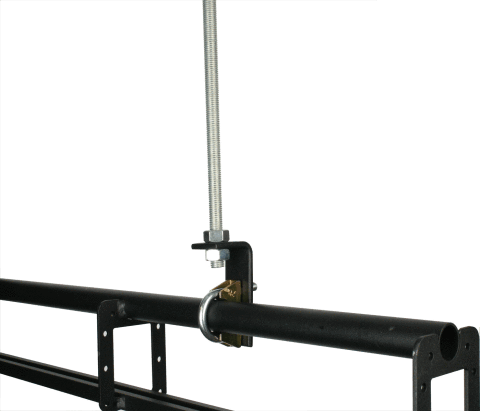

Option 2: The Short Support Bracket (T63751) is ideal for spaces with limited clearance. While it offers minimal adjustment, it ensures a compact and reliable mounting solution.


Downloads:

User Manual




Key Features:

  • Compatible with Doughty Six Track curtain systems
  • Adjustable Support Bracket (T63750) allows up to 100mm of vertical adjustment
  • Short Support Bracket (T63751) is suitable for low-clearance installations
  • Supports up to 2.25m/7.4' for open cloth and 1.60m/5.2' for bunched cloth
  • Robust and reliable mounting solution for professional stage and theatre use



Specifications:

  • Bracket Types: Adjustable (T63750) and Short (T63751)
  • Adjustment Range: Up to 100mm using Adjustable Support Bracket with M12 Studding
  • Maximum Distance Between Supports: 2.25m/7.4' (open cloth), 1.60m/5.2' (bunched cloth)
  • Mounting Method: Suspended from top rail using M12 Studding and Lock Nuts
  • Application: Theatre curtain suspension for Doughty Six Track systems



References:


Doughty Engineering, a UK-based manufacturer since 1985, is a global leader in rigging, suspension, and lifting solutions for the entertainment industry. With a commitment to quality and safety, Doughty products undergo rigorous testing and comply with international standards, including TÜV certification. The company is a proud member of ESTA and PLASA, ensuring excellence in product performance and industry compliance.
