Doughty Single Sheave Pulley
Product No. T42800
Shipping calculator
Payment methods
Product details

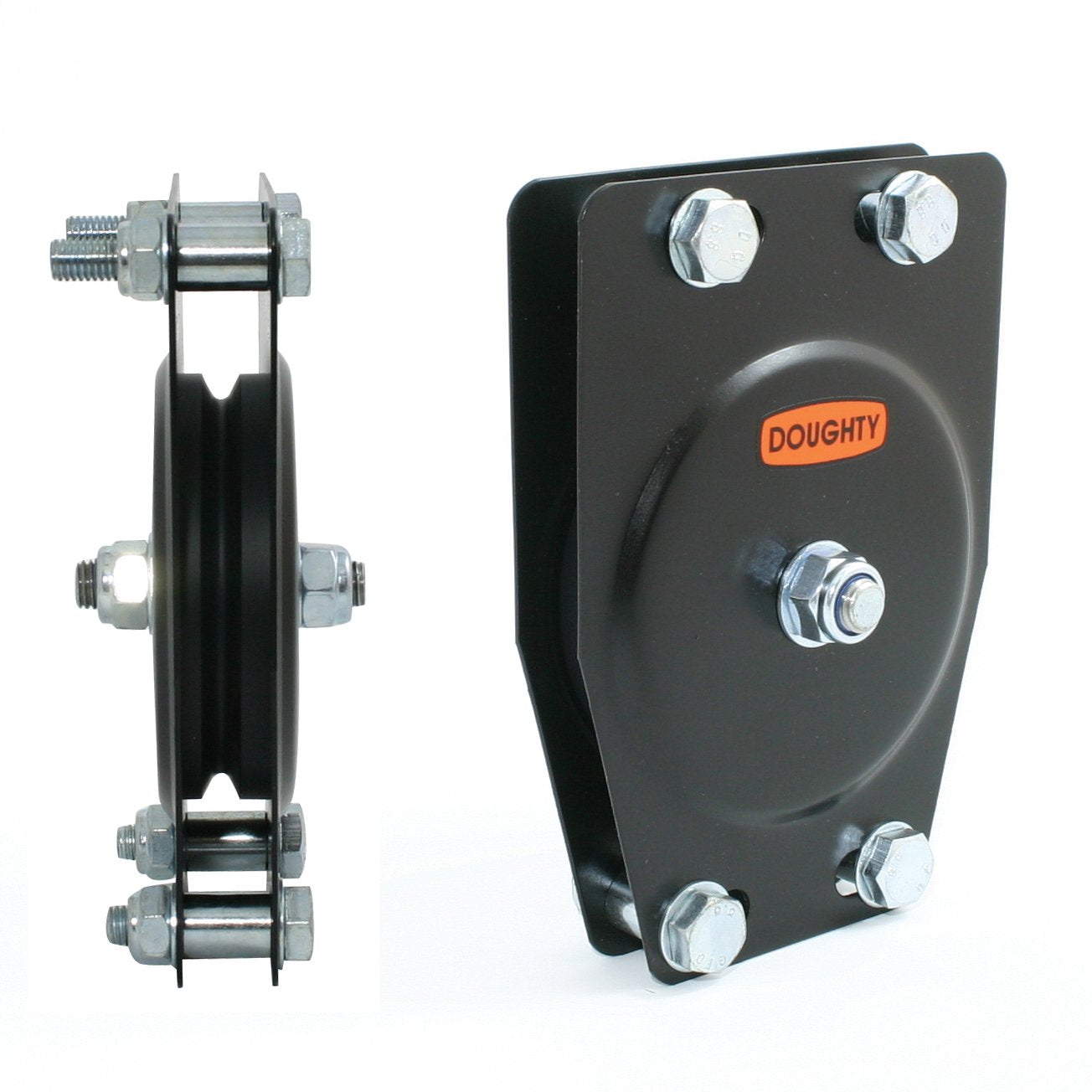

Single Sheave Pulley
The Doughty Pulley system is of modular construction, allowing easy assembly of single-sheave units from a limited range of standard components. It is designed for use within the theatre, film and TV Industry. With the addition of various brackets and fixings, the basic pulleys will fulfill a variety of specialist needs. Sheaves are available for fiber or wire ropes. All Standard Doughty Pulleys have a safe working load of 150 kg. A basic single sheave pulley is ready to accept any of the range of fixings. 3 sheave sizes are available - 4'', 6'' and 7'' diameter.
Sheave vs Pulley
Pulleys have been around for a long time to lift a heavy load easier via the system of ropes and wheels. SHEAVE and PULLEY are sometimes used interchangeably, but technically they are not the same.
SHEAVE: As a part of the pulley system, it is the rotating, grooved wheel inside the pulley. This is the part where a rope/wire fits into.
PULLEY: It is one of six types of simple machines. This is a system consisting wheel(s) over which a rope/wire can be pulled to change the direction of forces and make lifting easier. It allows loads to be lifted using much less force than would normally be applied.

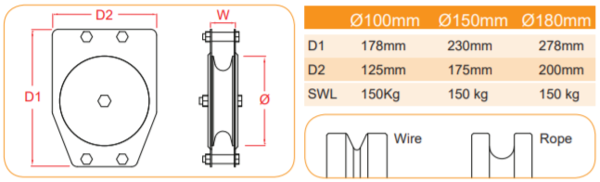

Features & Specifications
- Sheave Diamensions: 4'', 6'' and 7'' Diameter
-
The recommended sizes for Hand Ropes & Wires are:
4'' Diameter Sheave: 0.5'' Rope OR 0.16'' Wire
6'' Diameter Sheave: 0.7'' Rope OR 0.24'' Wire
7'' Diameter Sheave: 0.7'' Rope OR 0.24'' Wire - Width: 0.87''. Same for all sizes
- SWL: 331 lbs. Same for all sizes
Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls.
Quality and safety are key issues for Doughty. As a member of PLASA (Professional Light and Sound Association) and ESTA (Entertainment Services and Technology Association), Doughty adheres strictly to the standards of trading expected.
