Doughty Scaffold Clamp: Joint Pin

Doughty Scaffold Clamp: Joint Pin

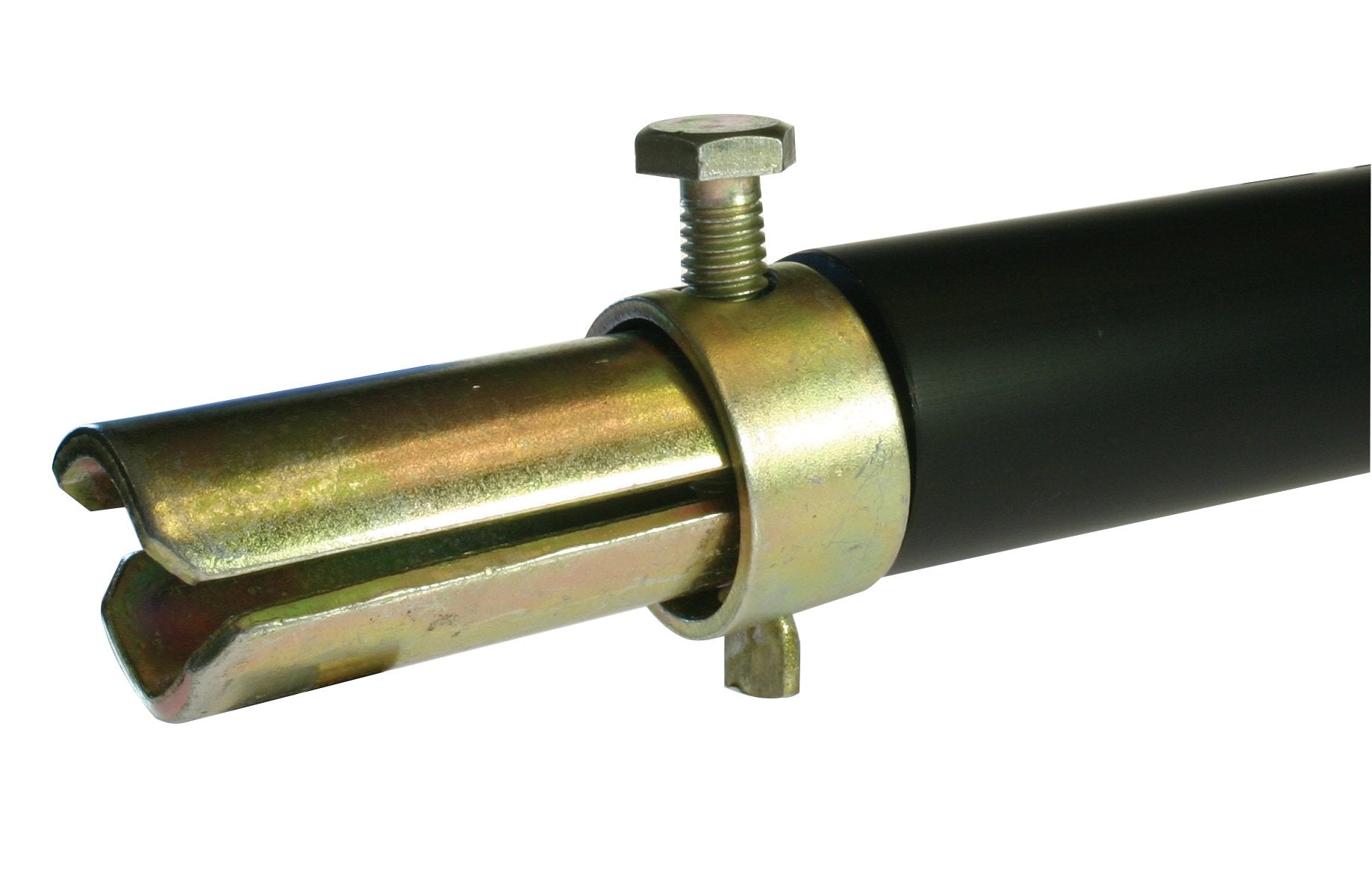

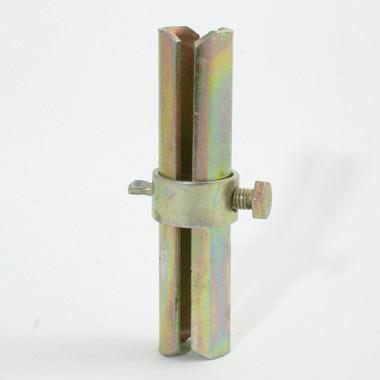

An internal pipe to pipe joiner fits 2'' diameter steel or aluminium tube. When tightening the screw, the outer sections expand and clamp on the internal side of the tube.

It is useful for quickly creating grids, frames, and towers for lighting or scenery from standard tubes.

We also supply the scaffold clamp to join tubes externally. For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Designed to internally join 2" diameter steel or aluminium tubes
• Expanding outer sections provide secure internal clamping
• Ideal for constructing lighting grids, frames, and towers
• Compatible with standard scaffold tubing
• Yellow Passivate finish for corrosion resistance and durability

Specifications:

• Tube Diameter: 48 x 4.25mm
• Weight: 1.9 lbs
• Finish: Yellow Passivate

References:

• External Scaffold Clamp
• Doughty Collection
• Doughty Engineering - Member of ESTA and PLASA

Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment. Quality and safety are key issues for Doughty. As the members of ESTA (Entertainment Services and Technology Association) and PLASA (Professional Light and Sound Association), it adheres strictly to the standards of trading expected.
