Doughty Rail - Top Hat Bracket (Steel)

Doughty Rail - Top Hat Bracket (Steel)

The Doughty Rail Top Hat Bracket is a robust ceiling mount solution engineered from mild steel. Designed to work seamlessly with the Doughty Rail system, this bracket provides reliable support and adjustable mounting height for both 1'' and 2'' top hats.

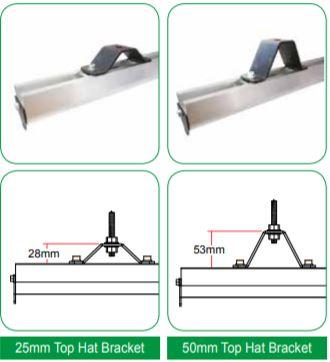

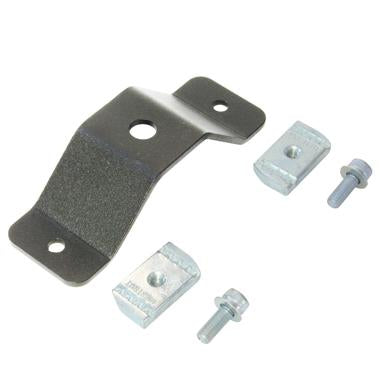

Secured using M6 Unistrut nuts, the bracket allows installation via an M10 stud, delivering approximately 0.59'' of height adjustment for the 1'' top hat and 1.57'' for the 2'' top hat. Its black powder-painted finish ensures durability and a professional appearance in any rigging environment.

Ideal for film, television, theatre, and studio applications, the Top Hat Bracket is built to meet high standards of safety and performance set by the industry.

Downloads:

User Manual

Key Features:

• Compatible with 1'' and 2'' top hats for versatile ceiling mounting
• Manufactured from durable mild steel for long-lasting strength
• Offers precise height adjustment: 0.59'' for 1'' top hat and 1.57'' for 2'' top hat
• Powder-painted black finish for a clean, professional look
• Supports a Safe Working Load (SWL) of 132 lbs for both top hat sizes

Specifications:

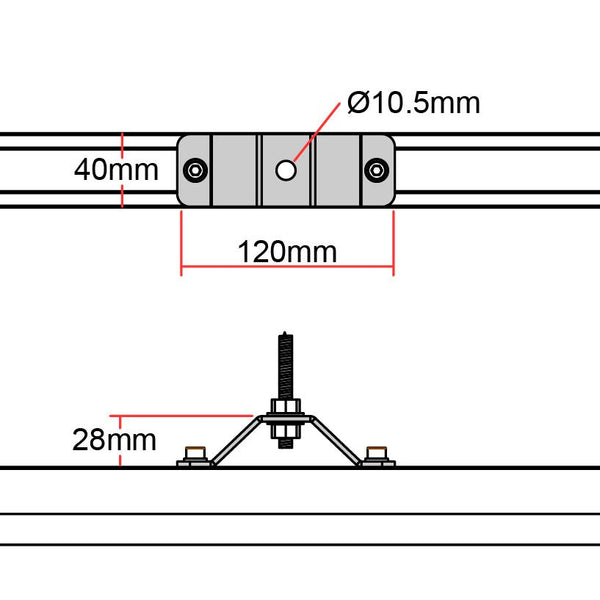

• Dimension: 1.57''(W) x 4.72''(L)
• Size: 1'' and 2'' Top Hat
• SWL: 132 lbs for both Top Hats
• Material: Steel
• Finish: Powder-Painted Black

References:

• Weight: approximately 1 lb for both Top Hats
• Height adjustment: 1'' Top Hat: 0.59'', 2'' Top Hat: 1.57''
• Installation must be performed by a competent person familiar with track/rail systems

Manufactured by Doughty Engineering, a UK-based leader in rigging and suspension equipment since 1985, the Top Hat Bracket is engineered to meet the highest standards of safety and performance in entertainment and studio environments.
