Doughty Girder Bracket

Doughty Girder Bracket

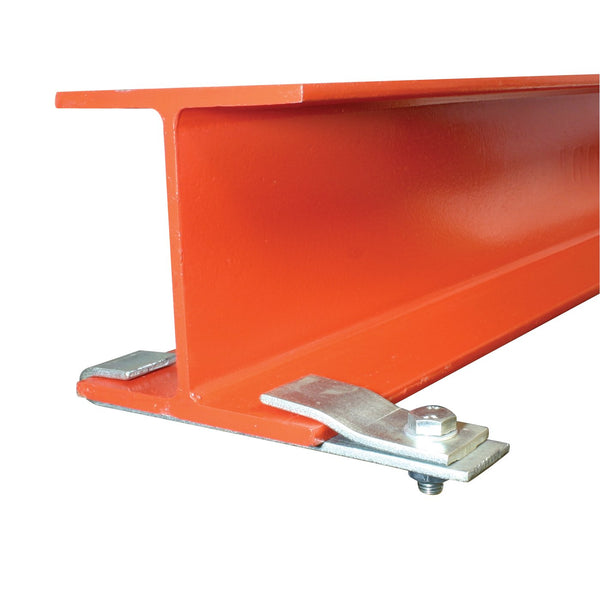

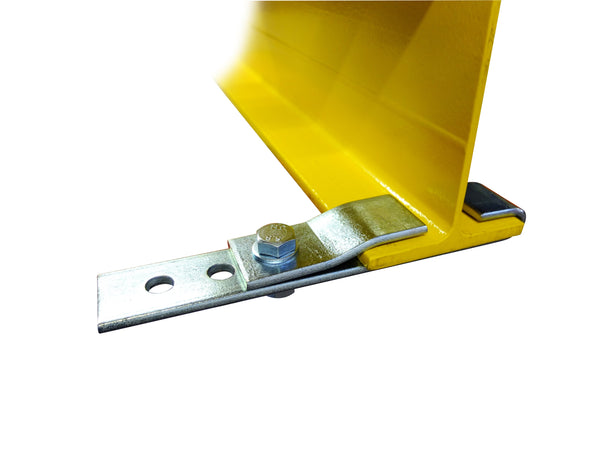

The Doughty Girder Bracket is a lightweight and compact solution designed for secure attachment to girders up to 5" in width. With a maximum flange thickness of 10mm, this bracket is ideal for rigging, suspension, and lifting setups in professional entertainment environments.

Engineered for strength and reliability, this girder bracket offers a safe working load (SWL) of 6.6 lbs and is constructed from high-quality mild steel with a durable zinc-plated finish. Weighing only 0.93 lbs, it's easy to handle and install without compromising on safety or performance.

Trusted by professionals across the film, theatre, and live event industries, the Doughty Girder Bracket delivers precision and durability when it matters most.

Downloads:

User Manual

Key Features:

• Lightweight design for easy handling and installation
• Compatible with girders up to 5" wide
• Maximum flange thickness of 10mm (0.39'')
• Safe working load (SWL) of 6.6 lbs
• Zinc-plated mild steel construction for durability

Specifications:

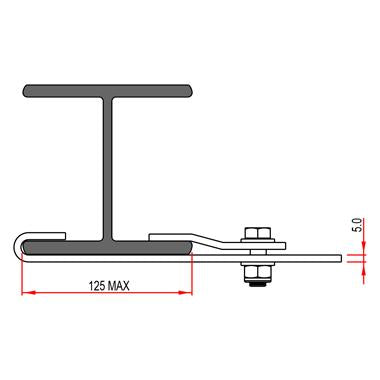

• Girder: up to 5"
• Max Flange Thickness: 0.39''
• SWL: 6.6 lbs
• Weight: 0.93 lbs
• Material: Mild Steel

References:

• Manufacturer: Doughty Engineering
• Finish: Zinc Plated
• Member of PLASA and ESTA

Doughty Engineering, established in 1985 and based in the UK, is a recognized leader in rigging, suspension, and lifting equipment for the entertainment industry. As a member of PLASA and ESTA, Doughty ensures all products meet the highest standards of quality and safety.
