Doughty Low Profile Clamp Basic

Doughty Low Profile Clamp Basic

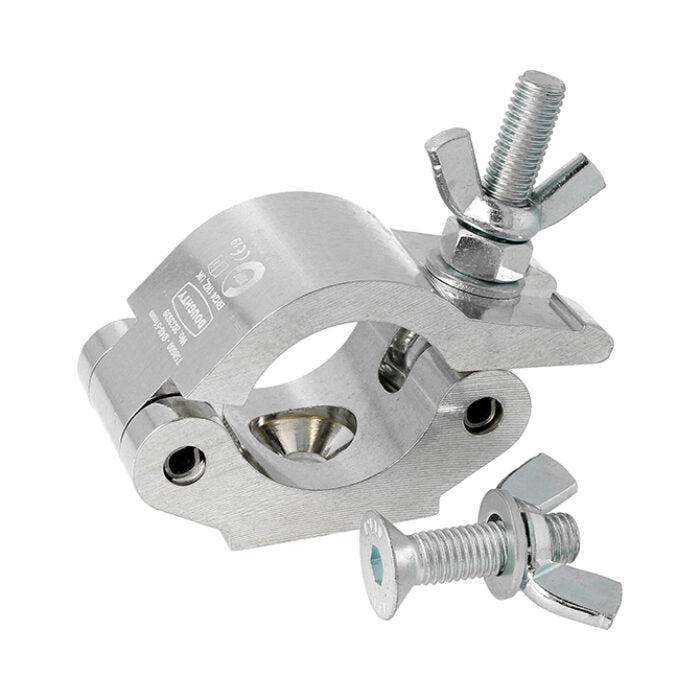

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide. It has a WLL of 500Kg and is supplied with an M12 X 45 countersunk bolt and wing nut. Available in polished silver or powder coated black.

This low profile clamp is designed for secure and efficient rigging applications, offering durability and versatility for professional lighting and staging requirements.

Engineered to meet demanding safety standards, this clamp provides a reliable grip on truss systems while maintaining a discreet and compact design.

Downloads:

Data Sheet

Key Features:

• High tensile extruded aluminium construction for superior strength
• Compatible with tube diameters from 48mm to 51mm (1.89″ – 2.01″)
• Clamp width of 50mm (1.97″) ensures a secure fit
• Supplied with M12 X 45 countersunk bolt and wing nut for easy installation
• Available in polished silver or powder coated black finish

Specifications:

• WLL: 750Kg

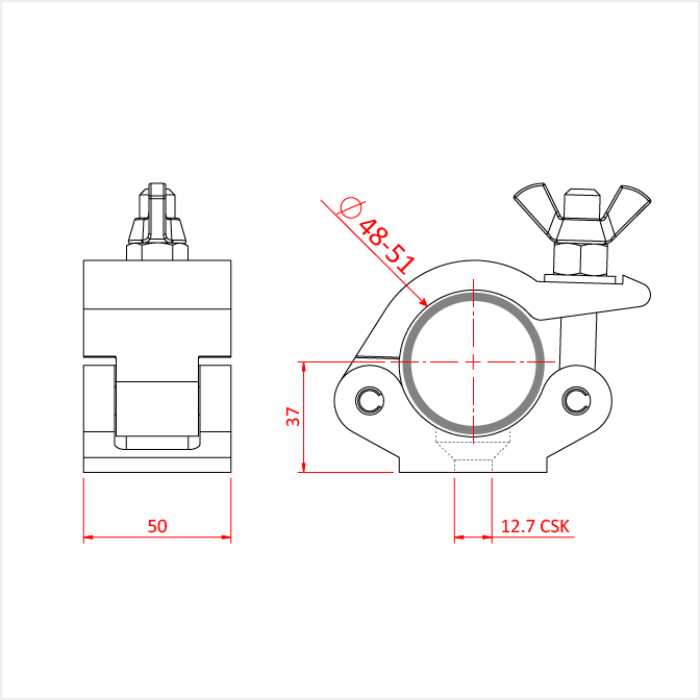

• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• Included Hardware: M12 X 45 countersunk bolt and wing nut

References:

• Doughty Engineering Standard Hardware
• Product Code: T58600 / T58601
• Compatible with standard truss systems (48mm – 51mm)
