Doughty Heavy Duty Multibeam Brackets

Doughty Heavy Duty Multibeam Brackets

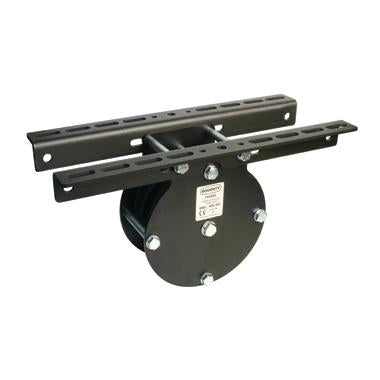

A pair of heavy duty universal drilled and slotted angle brackets. Designed for robust support in professional rigging scenarios, these brackets are engineered to fit channels, U beams, timbers, and grids in both wall and ceiling-mounted installations.

The precise hole configuration is tailored for compatibility with 48mm "U" Bolts (T56600), ensuring secure and efficient mounting. Suitable for a wide range of pulley sizes, making them a versatile choice for multiple rigging setups.

To order pulleys, please specify the part numbers for both the basic pulley required and the appropriate fixing system. Example: T42901 + T42990 = 100mm Single Pulley (for wire) fitted with Girder Brackets. For assistance, please contact us via chat.

Downloads:

User Manual

Key Features:

• Heavy duty angle brackets with universal drilled and slotted design
• Compatible with channels, U beams, timbers, and grids
• Hole spacing designed for use with 48mm "U" Bolts (T56600)
• Supports all pulley sizes for flexible rigging solutions
• Ideal for both wall-mounted and ceiling-mounted applications

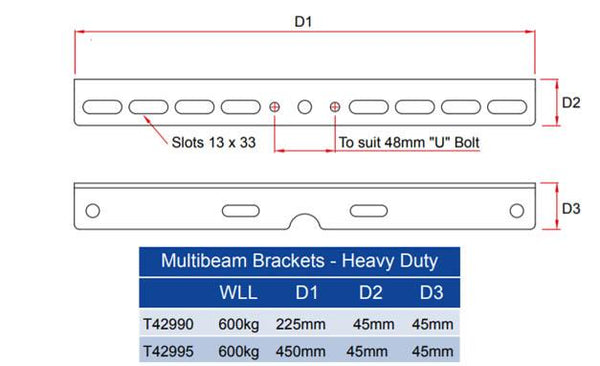

Specifications:

• Size:
  T42990: to suit 75-150mm (3”-6”) Girders
  T42995: to suit 150-300mm (6”-12”) Girders
• SWL:
  600kg, for both sizes

References:

• Part Number: T42990
• Part Number: T42995
• Compatible U Bolt: T56600 (48mm "U" Bolt)

For additional support or to place an order, please contact us through our online chat system.
