Doughty Boom Arms - Heavy Duty

Doughty Boom Arms - Heavy Duty

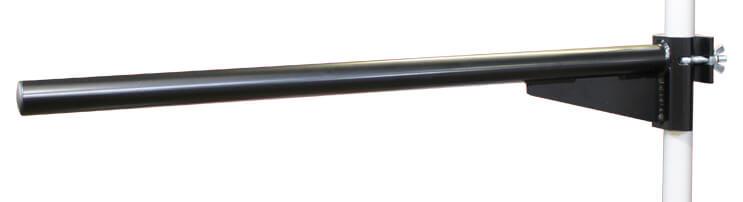

A new 40 inch Heavy Duty Boom Arm with an SWL of 110 lbs capable of taking the weight of a moving light has been launched by Doughty Engineering. This latest addition to the Boom Arm range is set to offer users an attractive and strong solution without the need for a brace.

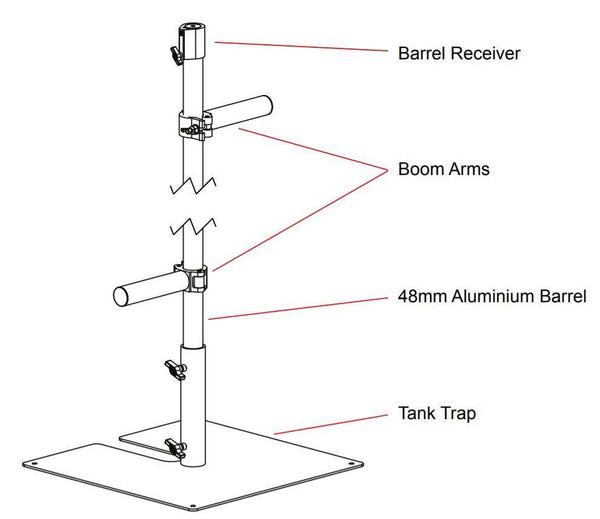

The lighting boom arm is ideally fixed to aluminum trusses and standard scaffold poles, also known as lighting booms. Lanterns can be mounted on the horizontal boom arms to create sidelight or cross light across the stage.

''It has an SWL of 110 lbs which should more than suffice in the majority of situations while still looking good in its place" - Mark Chorley, Design Engineer at Doughty Engineering. Some users also agree the extra 55 lbs is going to make a big difference for the event set-up.

Key Features:

• The latest addition to the Doughty Boom Arm range
• This long boom arm delivers a sturdy point to hang heavy equipment
• It offers an attractive solution without the need for a brace while moving a light
• Ideally fixed to aluminum trusses and standard scaffold poles
• Capable of supporting a moving light with an SWL of 110 lbs

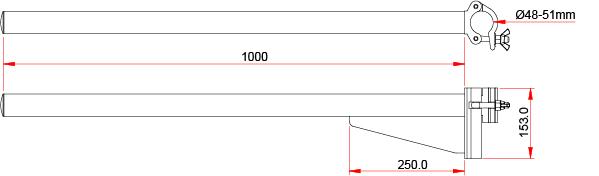

Specifications:

• Length: 39.4'' long
• SWL: 110 lbs
• Tube Diameter: 2''
• Material: Aluminum
• Finish: Available in Polished or Powder Painted Satin Black.

References:

• Heavy Duty Boom Arm
• Doughty Engineering official documentation
• ESTA and PLASA membership standards

Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. Quality and safety are key issues for Doughty. As a member of ESTA (Entertainment Services and Technology Association) and PLASA (Professional Light and Sound Association), Doughty always adheres strictly to the standards of trading expected.
