Doughty Hanging Truss Adapter - Heavy Duty

Doughty Hanging Truss Adapter - Heavy Duty

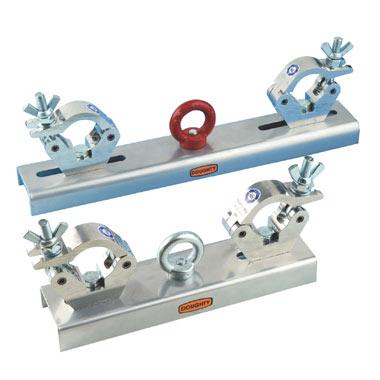

Heavy Duty Hanging Truss Adaptors are engineered to safely lift and suspend triangular and square truss sections using the Doughty winch stand range. Designed for professional rigging applications, these adaptors offer reliable and secure mounting with the added support of an M12 eye nut rated to 500kg.

This heavy-duty system includes a hanging ring and two slimline half couplers and is ideal for use with chain hoists. Compatible with tube diameters of 48mm to 51mm, it ensures a robust solution for temporary structures and live event setups.

Available in two sizes to suit varying truss spacing requirements, these adaptors are manufactured with high tensile 6082-T6 aluminum and finished with a silver powder coating for durability and premium appearance.

Downloads:

User Manual

Key Features:

• Provides a safe and secure means of lifting truss
• Adjustable to suit most truss sizes
• With two high tensile 6082-T6 aluminum couplers
• High-quality silver powder coated
• Includes hanging ring and slimline half couplers

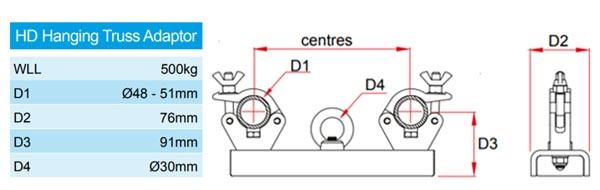

Specifications:

• SWL: 500kg
• Tube diameter: 48-51mm
• Truss Adaptors Sizes:
  T55710 - 150 to 250mm ctrs
  T55715 - 200 to 400mm ctrs
• Width: 76mm
• Suspension Point: M12 eye nut rated to 500kg

References:

• Compatible with Doughty winch stand range
• Designed for use with chain hoists
• Standard adaptors are available too
