Doughty Griphead

Doughty Griphead

British designed and manufactured lighting support for studios and locations of all types.

These products have been manufactured for a high degree of performance to give solutions to challenging lighting demands. The Griphead features an offset receiver. The conical clamping system enables items of irregular shape to be clamped securely.

Both Doughty Gripheads are available in polished or black finishes. For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

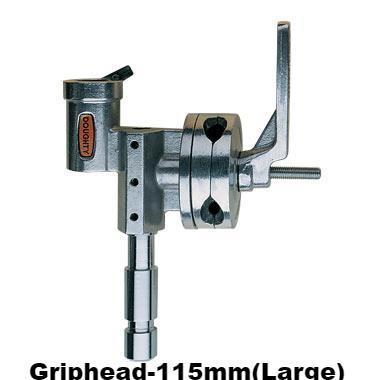

• 4.5'' Large Griphead with an offset 1.14 receiver to accommodate luminaires.
• Dual-position locking handle for BS and DIN Spigots.
• Clamp plate slotted to accept diameters of 1'', 0.79'', 0.63'' & 0.5''.
• Standard Griphead fits all Baby and ‘C’ stands via a 0.63'' receiver.
• Conical clamping system enables secure fixing of irregularly shaped items up to 2'' square.

Specifications:

• Large Griphead Size: 4.5''
• Standard Griphead Size: 2.56''
• Compatible Arms: 0.24'' to 1''
• Weight: Large Griphead – 5.3 lbs, Standard Griphead – 1.5 lbs
• Finish: Polished or Black

References:

• Doughty Engineering – UK-based manufacturer since 1985
• Member of ESTA (Entertainment Services and Technology Association)
• Member of PLASA (Professional Light and Sound Association)

Doughty Engineering is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. Quality and safety are central to every product they manufacture.
