Doughty Rail - Curved Theater Curtain Track (Low Profile)

Doughty Rail - Curved Theater Curtain Track (Low Profile)

Doughty Rail is a premium extruded aluminum walk-along curtain track system, expertly engineered to meet the demands of smaller studios, drama studios, black box theatres, churches, schools, village halls, architectural installations, residential interiors, and even pubs.

Designed with a low-profile construction, this curved theater curtain track features compact ball raced curtain runners, making it ideal for venues with limited space. The top suspension channel is compatible with 'Unistrut' nuts, enabling quick and easy installation. A wide variety of brackets are available to suit diverse mounting situations.

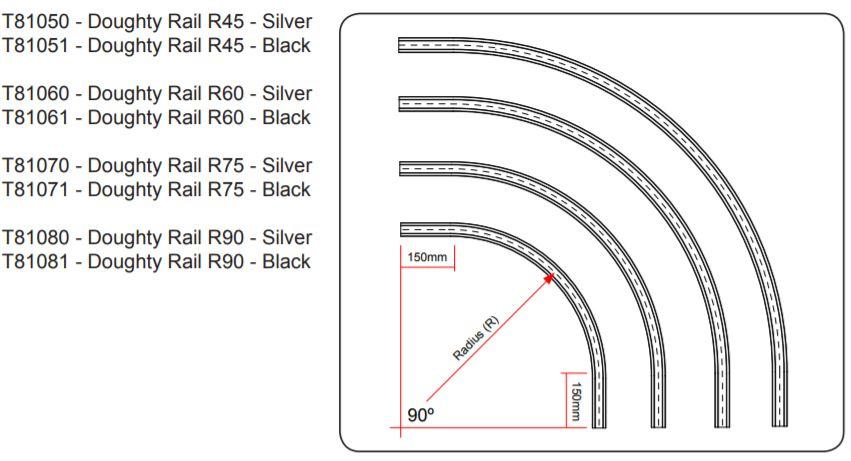

This 90-degree curved section is available in four standard curve radii and two finish options—natural aluminum and black. It incorporates a unique joint pin system for seamless assembly and precise alignment. Each curve includes a 5.9'' straight lead-in and a 5.9'' lead-out. Special custom curves are available upon request.

Downloads:

User Manual

Key Features:

• Single swipe or overlap curtain compatibility
• Walkalong only system — for line-operated systems, see Doughty Six Track Kit
• Low profile extruded aluminum section — ideal for tight spaces
• Wide range of mounting brackets for adaptable installation
• Easily cut to size on-site (ensure sharp edges are removed)

Specifications:

• Ball raced runner WLL: 13.2 lbs per each
• Material: Aluminum
• Finish: Natural Aluminium and Black
• Radius: 17.7'' to 35.4''
• Weight: 4.7 lbs - 7 lbs

References:

• Compatible with Unistrut nuts for efficient installation
• Includes 5.9'' straight lead-in and lead-out per curve
• Four standard curve options with custom curves available upon request

Doughty Engineering, established in 1985 in the UK, is a globally recognized manufacturer of rigging, lifting, and suspension equipment for the entertainment industry. As a proud member of ESTA and PLASA, Doughty upholds the highest standards in product quality and safety.
