Doughty Boom Arms with Brace

Doughty Boom Arms with Brace

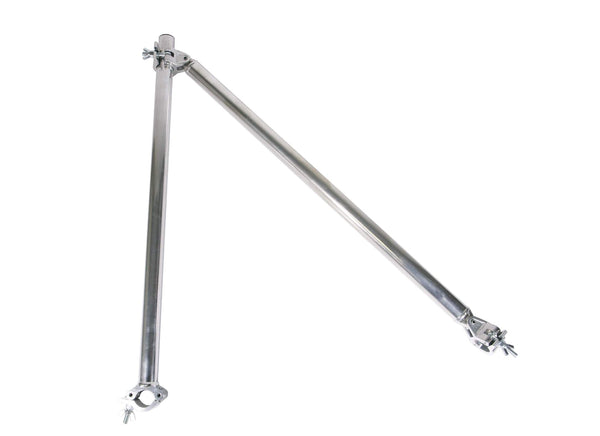

It is a 2'' diameter boom arm with a brace and welded half coupler for tubes with a diameter of 2 inches.

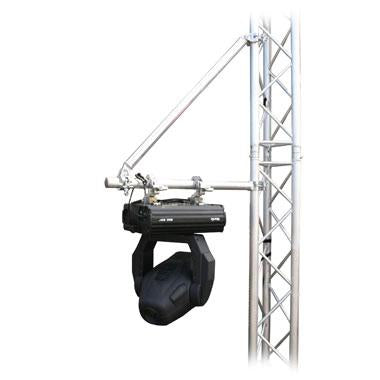

This truss boom arm is ideal for flying heavy luminaries such as moving heads from 2'' diameter vertical bars or trusses. By connecting a vertical bar/truss and the horizontal boom arm diagonally, the brace can eliminate movement or flexing in the boom arm.

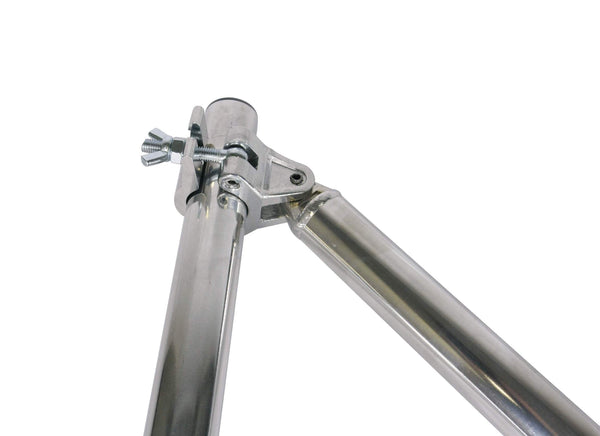

Manufactured with two articulated joints, most mounting situations can be accommodated.

Downloads:

User Manual

Key Features:

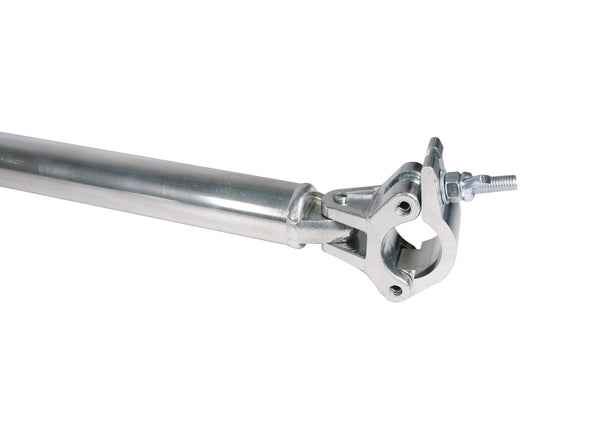

• 2'' diameter boom arm with welded half coupler
• Includes a brace to eliminate movement and flexing
• Designed for mounting heavy luminaries like moving heads
• Two articulated joints for flexible mounting options
• Compatible with 2'' diameter vertical bars and trusses

Specifications:

• SWL: 220.5 lbs
• Weight: 11 lbs

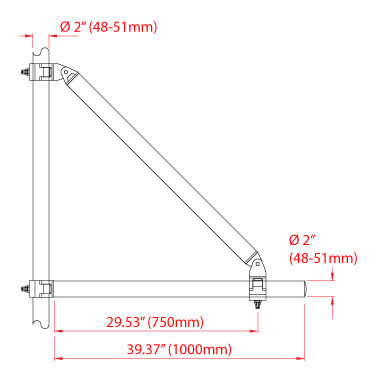

• Overall Length: 39.4''
• Usable length of the boom arm: 29.5''
• Diameter of Boom Arm: 2''

References:

• High tensile aluminum construction
• Available in both natural aluminum and black
• Manufactured by Doughty Engineering, a leading UK-based rigging equipment producer since 1985

Please also view our heavy-duty boom arm that offers a lighting solution without a brace. For any inquiries, please contact us via chat.
