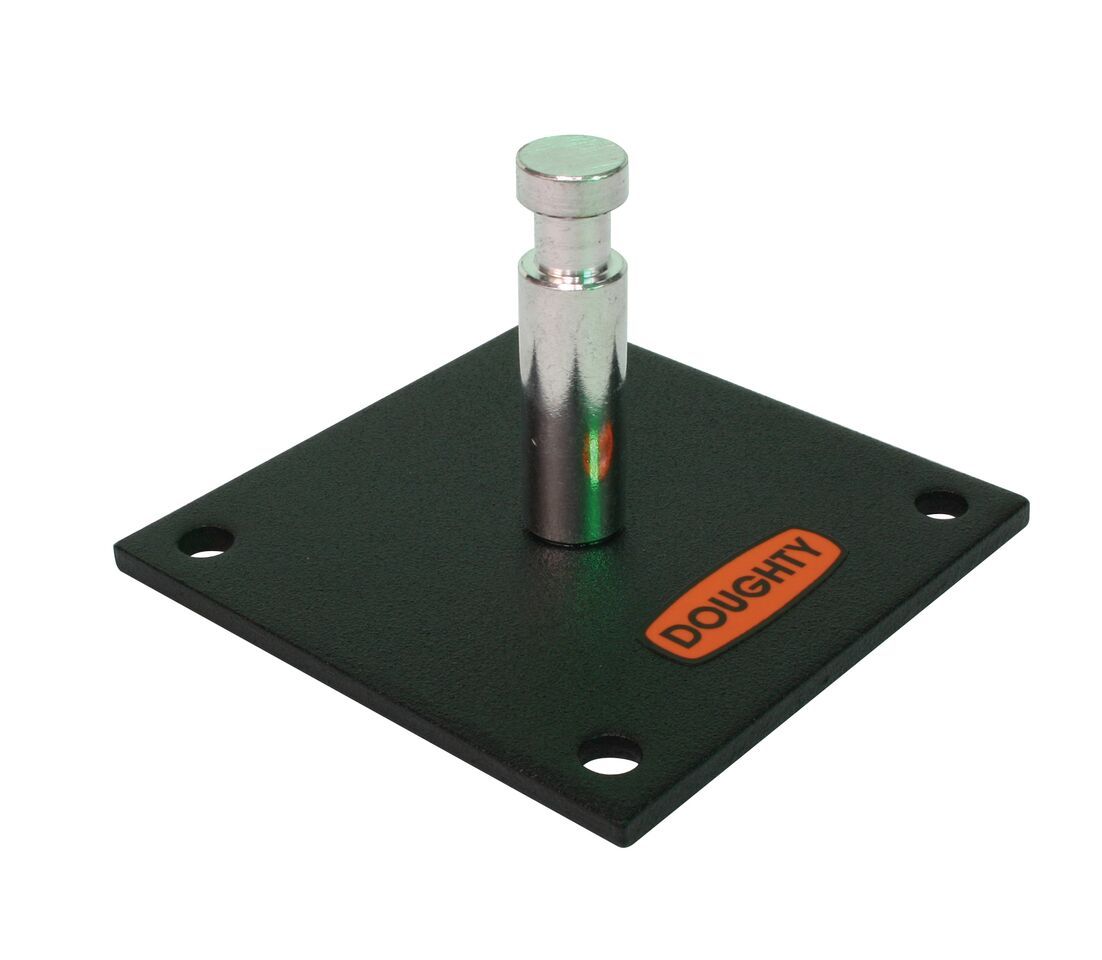

Doughty Baby Pin Wall Plate (0.63'')
The Doughty Baby Pin Wall Plate (0.63'') is a versatile mounting solution ideal for rigging lights and compatible gear in professional studio, theatre, or stage environments. Designed with a compact 3.9'' x 3.9'' footprint, this robust plate features a 16mm spigot, making it suitable for a wide variety of lighting fixtures and accessories.
Constructed from durable mild steel and powder coated for enhanced protection, the plate includes four corner fixing holes for secure attachment to walls, ceilings, or floors. The aluminum spigot offers lightweight strength and corrosion resistance. This wall plate is a reliable option for both permanent and temporary installations.
Available in standard black finish, with other colors available upon special order. For additional support or customization inquiries, please contact us via chat.
Downloads:
Key Features:
- 3.9'' x 3.9'' steel mounting plate with 16mm (0.63'') baby pin spigot
- Designed for mounting to walls, ceilings, or floors via four corner fixing holes

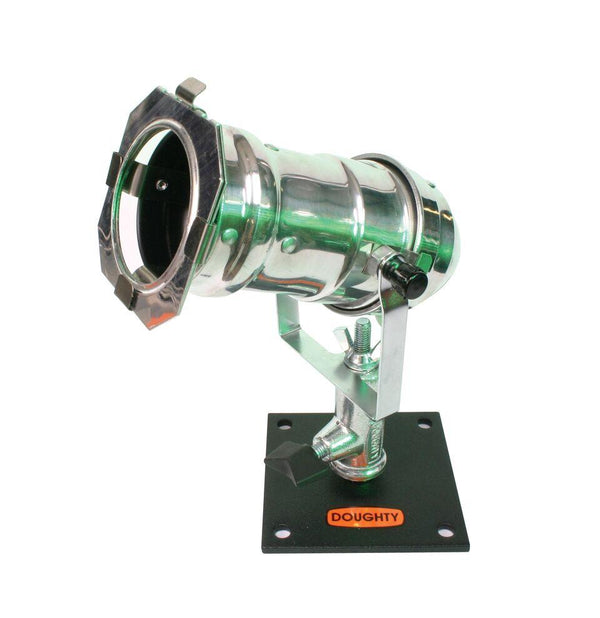

- Supports a wide variety of lights and gear for film, TV, or stage use
- Powder-coated steel construction with aluminum spigot for strength and durability
- Alternate color finishes available upon special request

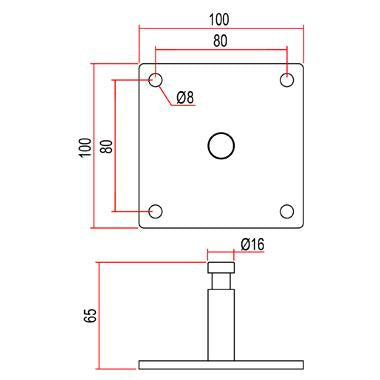

Specifications:
- Size: 3.9'' x 3.9''
- Spigot: 0.63''
- Corner fixing holes: 0.3'' diameter
- Weight: 0.95 lbs
- Material: Steel
References:
- Doughty Engineering – Established in 1985, UK-based manufacturer
- Member of PLASA (Professional Light and Sound Association)
- Products rigorously tested and TÜV approved where applicable
Doughty Engineering is recognized globally for producing high-quality rigging, suspension, and lifting equipment for the entertainment industry. Trusted by professionals in film, television, theatre, and live events, Doughty products are engineered for safety, reliability, and performance.
