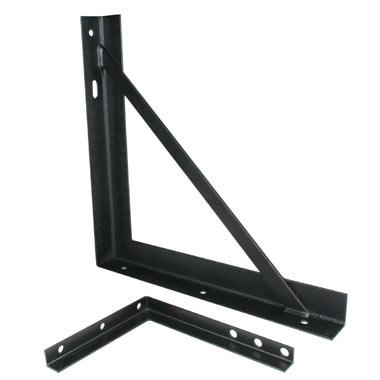

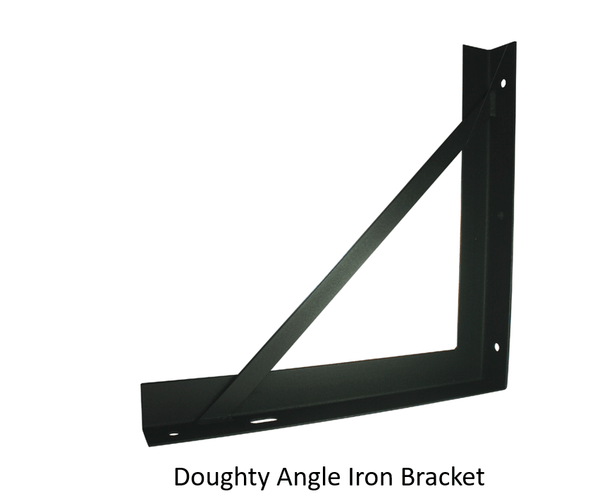

Doughty Angle Iron Bracket
With a diagonal support strut, the angle iron bracket is engineered for heavy-duty wall mounting applications across a wide range of venues. This robust bracket is ideal for supporting heavy fixtures and equipment in professional environments.
The bracket is slotted to accept a saddle clamp (T30800), which is designed primarily for wall mounting. This configuration allows for safe and efficient suspension of fixtures and tubes from a vertical surface, making it a versatile solution for rigging professionals.

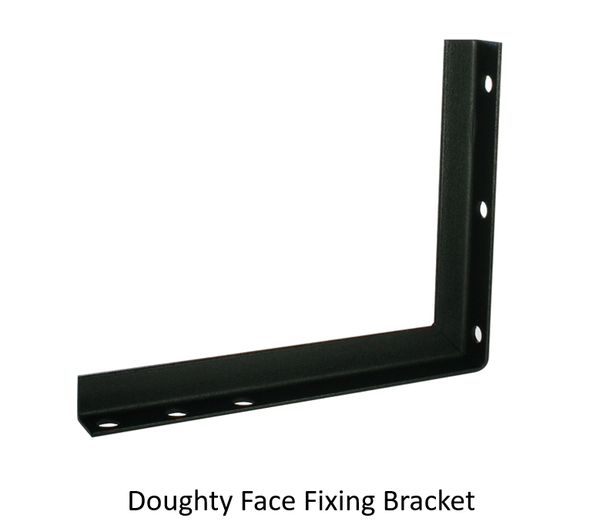

A face fixing bracket is also available for alternate mounting requirements. More product specifications can be found below. For any inquiries, please contact us via chat.
Downloads:
Key Features:
- Heavy-duty angle iron bracket with diagonal support strut for enhanced stability
- Designed for wall-mounting applications in various professional venues
- Compatible with T30800 saddle clamp for vertical surface suspension
- Available with a face fixing bracket for alternate mounting needs
- Engineered by Doughty Engineering, a leader in rigging and suspension equipment

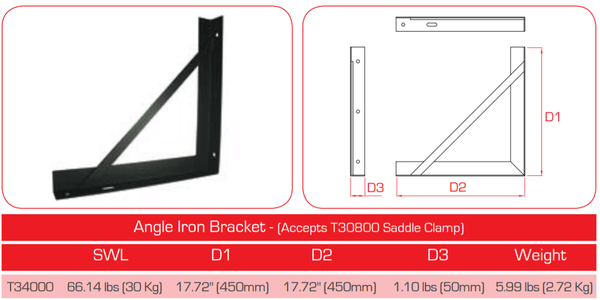

Specifications:
-
SWL:
T34000: 66 lbs
T34100: 33 lbs -
Weight:
T34000: 6 lbs
T34100: 0.95 lbs -
Dimensions:
T34000: 17.7'' x 17.7''
T34100: 7.7'' x 9.5''
References:
- Manufactured by Doughty Engineering, UK
- Member of PLASA (Professional Light and Sound Association)
- Member of ESTA (Entertainment Services and Technology Association)
Doughty Engineering has been at the forefront of designing and manufacturing rigging, suspension, and lifting equipment since 1985. Recognized globally in the film, TV, theatre, and concert industries, Doughty remains committed to delivering quality and safety across all products.
