Doughty Aluminum Tube

Doughty Aluminum Tube

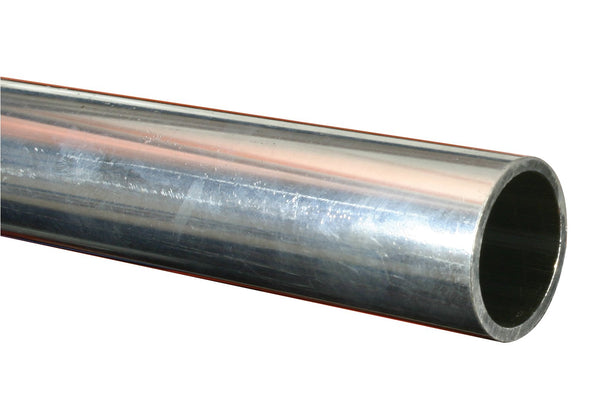

6082 T6 Aluminum Tubes provide the highest strength of all the alloys in the 6000 series. It has excellent corrosion resistance, commonly used in trusses, high-stress applications etc. They are available in multiple stock lengths - from 39'' to 240''. It is also possible to cut to your specified sizes upon request.

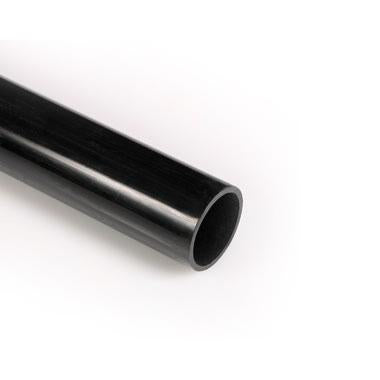

They are available in self-color or anodized black.

We also supply Galvanized Steel Tubes. For any other aluminum tube sizes or inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Manufactured from high-strength 6082 T6 aluminum alloy
• Excellent corrosion resistance for outdoor and high-stress use
• Available in self-color or anodized black finish
• Stock lengths range from 39'' to 240'' with custom cuts available

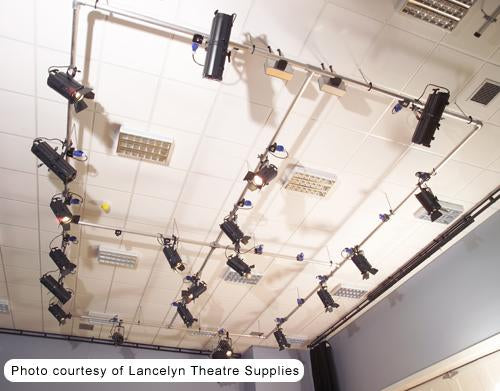

• Trusted for use in trusses and stage rigging applications

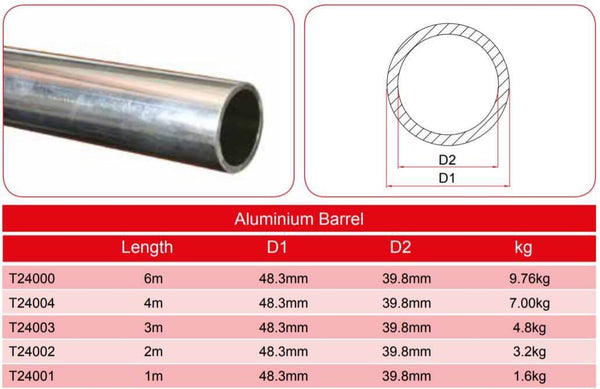

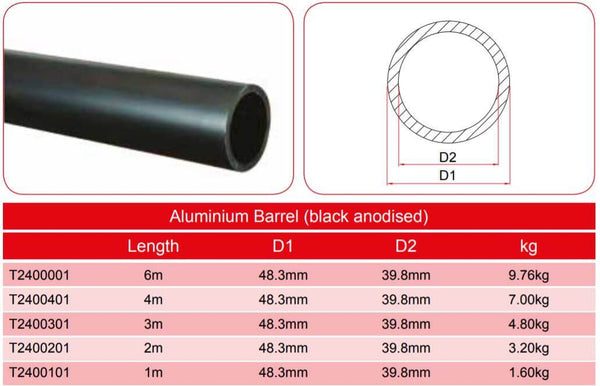

Specifications:

• Diameter: 2''
• Type: Aluminum Round Tube
• Tube Wall Thickness: 0.18''
• Material: Grade 6082 T6 Aluminum
• Mechanical Properties:
  - Tensile strength (Rm): 295 N/mm² min
  - Yield strength (Re) (0.2% Proof Stress): 255 N/mm² min
  - Elongation (A) on a gauge length, Lo, of 50 mm: 7 % min

References:

• BS 1139-1.2 [Specification for aluminum tube]
• BS 7906-1:2005 [Use of lifting equipment for performance, broadcast and similar applications]
• Doughty Engineering is a member of PLASA and ESTA, ensuring adherence to industry standards

Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. Quality and safety are key issues for Doughty. As a member of PLASA (Professional Light and Sound Association) and ESTA (Entertainment Services and Technology Association), Doughty adheres strictly to the standards of trading expected.
