Doughty Key Clamp: 3-Way Elbow

Doughty Key Clamp: 3-Way Elbow

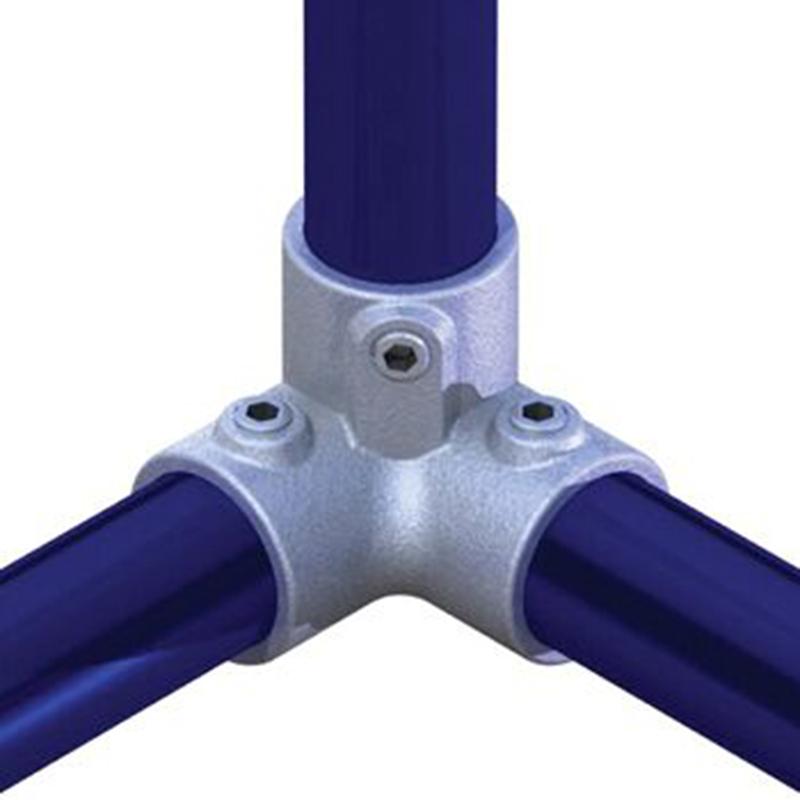

The Doughty Key Clamp: 3-Way Elbow is designed for use on three-way enclosed 90-degree corner joints. This component is ideal for creating right-angle connections on straight and level guardrails, ensuring structural integrity and clean alignment.

Its versatile design also makes it suitable for enclosed corner joints in square structures such as benches and various custom constructions. Whether for industrial, commercial, or creative purposes, this clamp delivers both strength and modular flexibility.

For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Used for 3-way enclosed 90° corner joints
• Typically applied on level guardrails at 90° corners
• Also suitable for enclosed corner joints in square structures like benches
• High corrosion resistance for long-term durability
• 100% salvageable and reusable for sustainable construction

Specifications:

• Dimensions: 3.9'' x 3.9''
• Tube Diameter: 2''
• Weight: 2.6 lbs
• Material: Malleable iron castings
• Finish: Galvanized to British Standard 729 (Hot Dip Galvanized Coatings on Iron and Steel Articles)

References:

• Manufactured by Doughty Engineering, UK-based since 1985
• Member of ESTA (Entertainment Services and Technology Association)
• Member of PLASA (Professional Light and Sound Association)

Doughty Engineering is recognized globally for its precision-engineered rigging, suspension, and lifting equipment. Built to meet the highest industry standards, this 3-Way Elbow Key Clamp reflects Doughty's commitment to quality, safety, and innovation.
