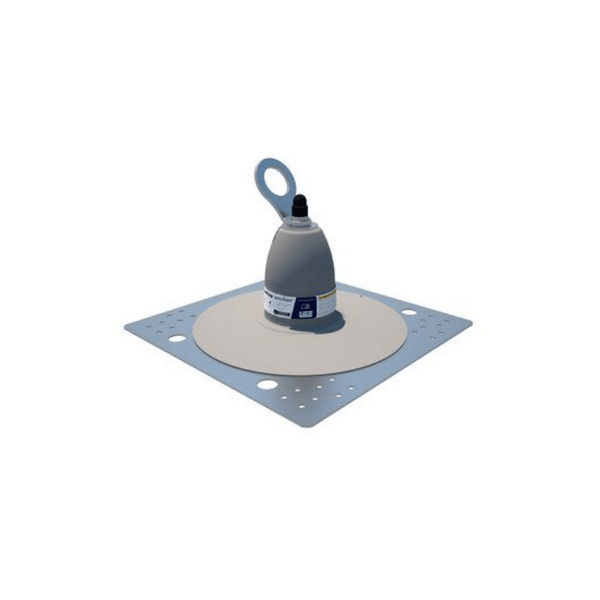

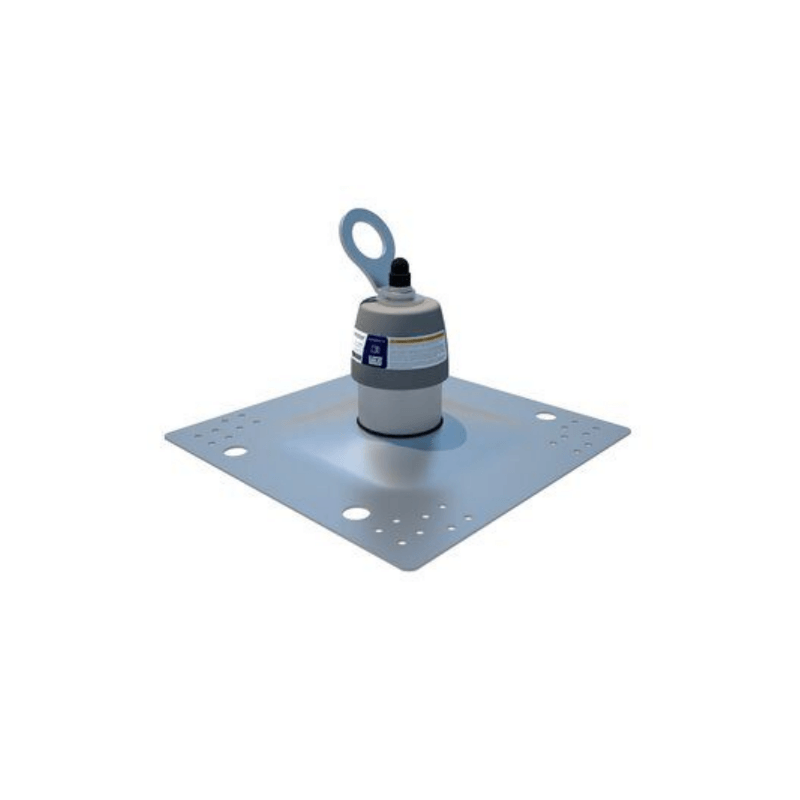

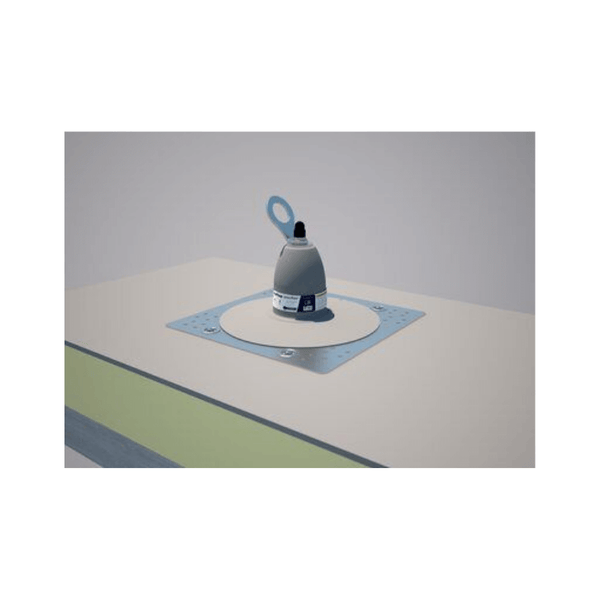

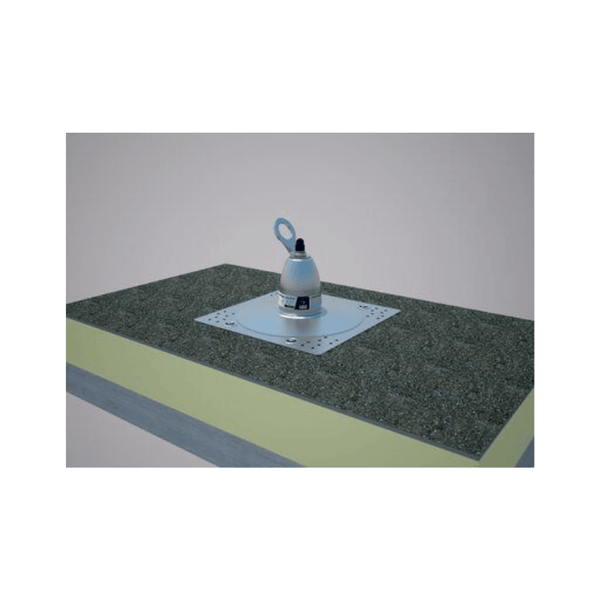

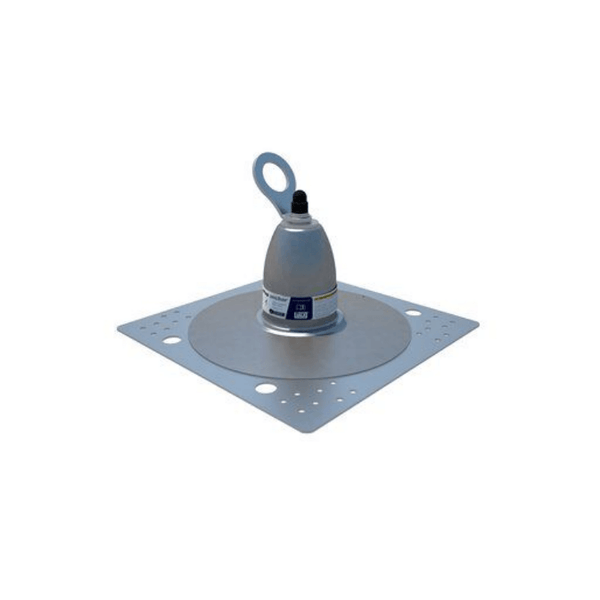

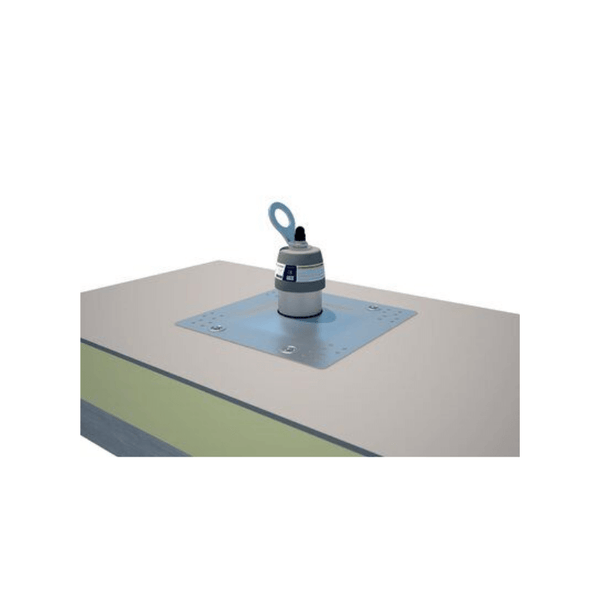

3M™ DBI-SALA® Roof Top Anchors

The 3M™ DBI-SALA® Roof Top Anchors can be used on either flat or sloped roof decks (up to 3:12 pitch). These roof top anchors offer extremely fast and efficient installation to built-up type roofs and can be installed to standard membrane, single ply PVC membrane single ply bitumin membrane roofs. With a unique load distributing design that protects roof and user, this anchorage connector is compatible with various fall arrest connecting systems. This device is designed for multi-person use with a horizontal lifeline system, and also includes a swiveling tie-off point for complete mobility. The 3M™ DBI-SALA® Roof Top Anchors are built from top quality, rugged and corrosion resistant materials that guarantee high strength and durability to stand up to the toughest of environments.

For any inquiries please contact us via Chat.

SPECIFICATIONS

• Capacity: 310 lbs
• Weight:
  2100139 - 16 lbs
  2100140 - 11.5 lbs
  2100142 - 11.5 lbs
• Dimensions:  16'' x 16'' x 9''
• Attachment Type: Toggle Bolt
• Color: Silver
• Install Type: Permanent
• For Use With:
  2100139 - Standard Membrane Roofs
  2100140 - PVC Roofs
  2100142 - Bitumin Roofs
• iSafe Equipped: No
• Recommended Industry: Construction, General Industrial, Mining, Oil & Gas
• Standards:  OSHA 1910.140, OSHA 1926.502

FEATURES

• 2100139: Installs to standard membrane and built-up type roofs
• 2100140:  Installs to single ply PVC membrane and built-up type roofs
• 2100142:  Installs to single ply bitumin membrane and built-up type roofs
• For use on flat or sloped (up to 3:12 pitch)

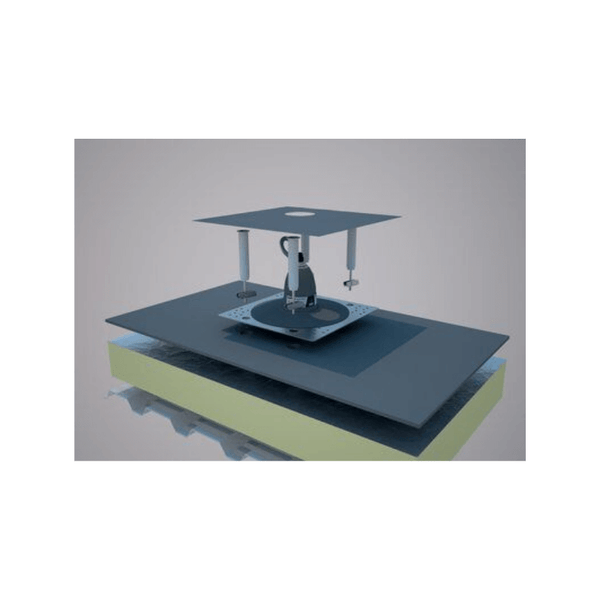

• Fastens through membrane, insulation and into metal, wood or concrete
• Multiple fastener options available
• Exclusive design offers fast installation
• 2100139: Complete with shroud offering maximum weather proofing
• 2100140:  Complete with shroud for PVC roofs offering maximum weather proofing
• 2100142:  Complete with shroud for bitumin offering maximum weather proofing
• Aesthetic design compliments the roof
• Thermal efficient design and construction
• Load distributing design protects roof and user
• Swiveling tie-off point for complete mobility
• Compatible with various fall arrest connecting systems
• Multi-person use with horizontal lifeline system
