3M™ DBI-SALA® ExoFit™ XP Vest-Style Harness (Quick Connect)

• DESCRIPTION
• SPECIFICATIONS
• FEATURES
• VIDEO + RESOURCES

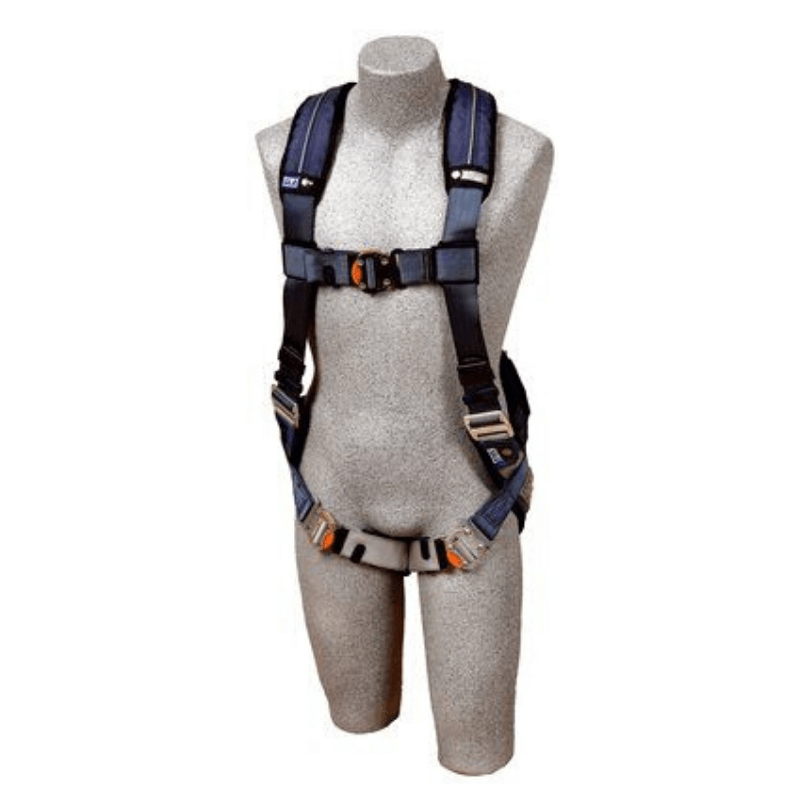

3M™ DBI-SALA® ExoFit™ XP Vest-Style Harness

The 3M™ DBI-SALA® ExoFit™ XP Vest-Style Harness is ideal for a wide range of industries and professions. Its design incorporates a single piece of material that wraps around the wearer in the shape of an X, for the ultimate in no tangle donning and comfortable security. It features built-in shoulder, back, leg and hip padding made with state of the art 3D mesh lining that allows moisture to evaporate and cool air to circulate throughout the pads. This padding is removable, completely washable and like all XP materials is soft and lightweight, yet extremely durable. This harness also features a stand-up back D-ring with impact indicator, quick connect chest and leg straps, loops for a body belt as well as parachute torso adjusters. The ExoFit™ XP Vest-Style Harness includes great features for the hardest working professionals.

For a full list of ExoFit™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit™

ExoFit™ harnesses are the original comfort fit harness from 3M™ DBI-SALA® that innovated the industry. The single-piece design dons without tangling and provides comfortable security for the long day ahead. Workers all over the globe trust the ExoFit™ brand for unbeatable safety features that are packed into the most comfortable harnesses available.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1110100 - 4.15 lbs
  1110101 - 4.3 lbs
  1110102 - 4.35 lbs
  1110103 - 4.48 lbs
• Tensile Strength: 6000 lbs
• Body Belt: No
• Subpelvic Strap: Yes
• Buckle Type: Quick Connect
• Chest Buckle Material: Zinc Plated Steel
• Leg Buckle Material: Zinc Plated Steel
• Padding Location: Shoulder/Back and Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.4, OSHA 1910.66, OSHA 1926.502

FEATURES

• Removable shoulder, back and leg comfort padding
• Stand-up back D-ring with impact indicator
• Quick connect chest and leg straps
• Soft, lightweight webbing
• Loops for body belt
• Built-in lanyard keepers
• Parachute torso adjusters
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)

RESOURCES

• 9 Things to Consider When Looking for a Safety Harness

Catalog

3M™ DBI-SALA Fall Protection Full Line Catalog

Instructions

Exofit & Exofit XP Full Body Harness Instructions

Certificates

1110100: Certificate of Compliance, Declaration of Conformity

1110101: Certificate of Compliance, Declaration of Conformity

1110102: Certificate of Compliance, Declaration of Conformity

1110103: Certificate of Compliance, Declaration of Conformity
