3M™ DBI-SALA® ExoFit™ Derrick Vest-Style Harness

The 3M™ DBI-SALA® ExoFit™ Derrick Vest-Style Harness features an 18” back D-ring extension, belt with pad and back D-ring, seat sling with positioning D-rings, tongue buckle legs, and built-in comfort padding.

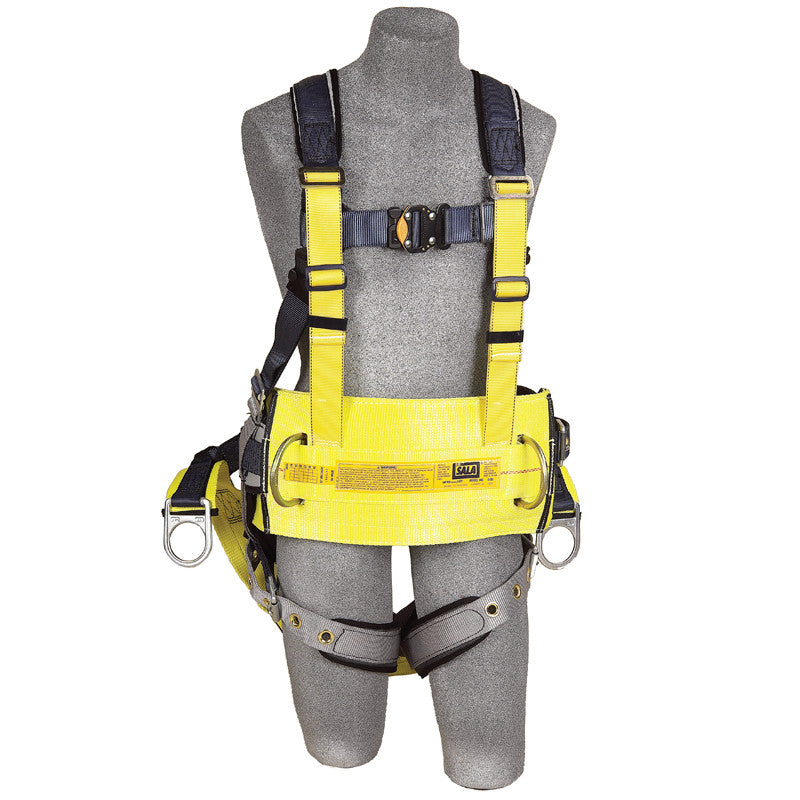

*Product is shown with 1000570 Derrick Belt (sold separately)

ExoFit™ Derrick Harnesses are built with oil rig workers in mind. Whether you are working onshore or off, the Derrick Harness has the features you need for the unique challenges you face. Like all ExoFit™ harnesses, comfort is a main feature, and easy donning is ideal for workers who operate monkey and tubing boards. These models include connections for an optional derrick belt that enhances comfort while positioning for the next drilling pipe.

For a full list of ExoFit™ features, click here.

About ExoFit™

ExoFit™ harnesses are the original comfort fit harness from 3M™ DBI-SALA® that innovated the industry. The single-piece design dons without tangling and provides comfortable security for the long day ahead. Workers all over the globe trust the ExoFit™ brand for unbeatable safety features that are packed into the most comfortable harnesses available.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight: 8.4 lbs
• Body Belt: Yes
• Buckle Type: Quick Connect
• Chest Buckle Material: Zinc Plated Steel
• Leg Buckle Material: Stainless Steel Grommet
• Padding Location Type: Back/Hip, Shoulder/Back & Leg
• D-Ring Locations: Back with Extension Suspension
• iSafe Equipped: Yes
• Thread/Stitching: Polyester
• Label: Vinyl
• Web Keeper: Nylon, Polyethylene
• Web: Polyester
• Recommended Industry: Oil & Gas
• Standards: OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req., ANSI A10.32, ANSI Z359.1, ANSI Z359.3, ANSI Z359.4

FEATURES

• Built-in shoulder, back and leg comfort padding
• 18" back D-ring extension
• Body belt/hip pad with back D-ring
• Seat sling with positioning D-rings
• Integrated derrick belt connection (shown with 1000570 derrick belt - must order separately)
• Quick connect chest strap
• Tongue buckle leg straps
• Soft, lightweight webbing
• Anti-tear ballistic nylon
• Built-in reflective piping
• Parachute torso adjusters
• Protected labels, equipped with i-Safe™
