OZ Lifting Stainless Steel Push Beam Trolley
Product No. OZSS05PBT
Regular price
$648.27
$648.27
Pay in full or split into interest-free installments with Shop Pay.
Shipping calculator
Please enter correct zip code
Payment methods
Product details

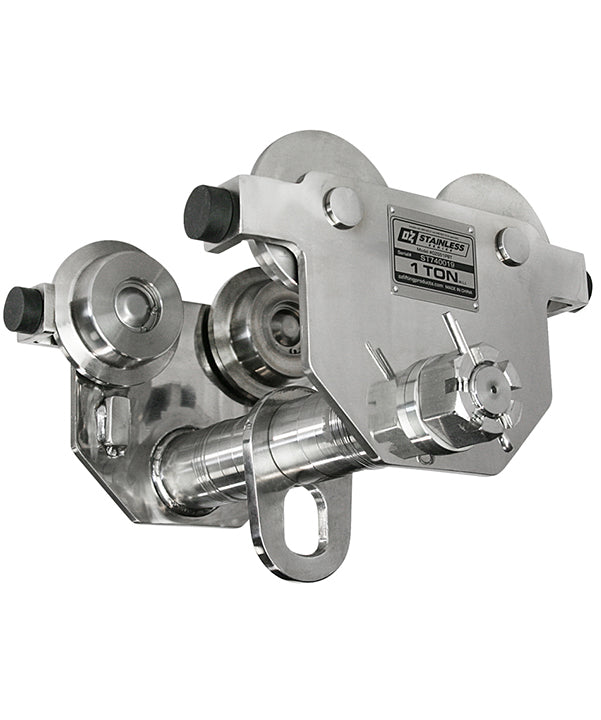

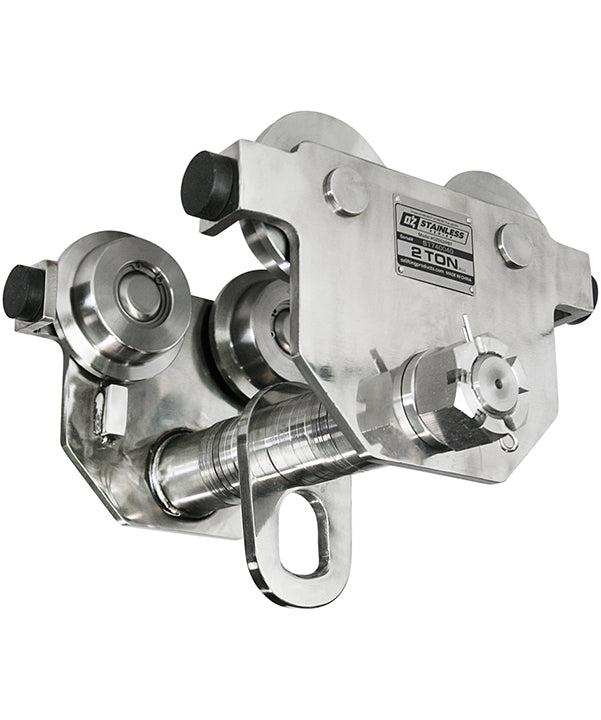

OZ Lifting Stainless Steel Push Beam Trolley
The Oz Lifting stainless steel push beam trolley is designed for use with manual or powered hoists to easily move a load along a beam. The trolley is shaped to fit most I, S and W beams.
FEATURES
- Lightweight, robust construction
- Fits to most I, S, and W-Beams
- Type 304 stainless steel for corrosive resistance
- Precision ball bearing trolley wheels
- Anti-drop plate
- Stainless steel ID tag
- Individual test certificate and serial number
Standards – CE, AS1418.2, ASME B30.11, ASME B30.16
(for use with manual or powered hoists)
Specifications
| OZSS05PBT | OZSS1PBT | OZSS2PBT | OZSS3PBT* | OZSS5PBT* | ||
| Safe Working Load (tons) | .5 | 1 | 2 | 3 | 5 | |
| Adjustable Flange Width (in) | 2-6 | 2.5-8.00 | 3.5-8 | 4-6 | 4.5-6 | |
| Max Flange Thickness (in) | 1.06 | 1.06 | 1.06 | 1.10 | 1.14 | |
| Product Dimensions (in) | A | 10 | 13 | 13.22 | 14.56 | 15.15 |
| B | 7.83 | 9.68 | 10.86 | 13.07 | 14.84 | |
| C | 1.6 | 9 | 10.55 | 12.44 | 14.17 | |
| D | 4 | 5 | 5.9 | 6.8 | 7.8 | |
| Minimum Radius Curve (ft) | 2.62 | 3.28 | 3.60 | 4.26 | 4.59 | |
| Net weight (lbs) | 18.7 | 26.5 | 43 | 64 | 97 |
* Push Beam Trolleys 3 Ton and 5 Ton available. Special order.
Geared Beam Stainless Trolleys .5 Ton – 5 Ton available. Special order.
Wheel and bail dimensions
Dimensions are for reference only and subject to change without notice.
| OZSS05PBT | OZSS1PBT | OZSS2PBT | |
| E (in) | 3.10 | 3.75 | 4.25 |
| F (in) | 2.23 | 2.87 | 3.38 |
| G (in) | 3.50 | 4.60 | 5.66 |
| H (in) | 1.23 | 1.69 | 2.09 |
| I (in) | 0.59 | 0.64 | 0.82 |
| J (in) | 0.97 | 1.18 | 1.48 |
| K (in) | 1.98 | 2.94 | 3.34 |
| L (in) | 0.30 | 0.87 | 1 |
