SteelGrip® Temporary Cable HLL System and Stanchions with 12" beam clamps

Product No. 6033012

No reviews
Regular price $1,165.50 USD
SIZE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

SteelGrip® Temporary Cable HLL System and Stanchions with 12" beam clamps



FEATURES

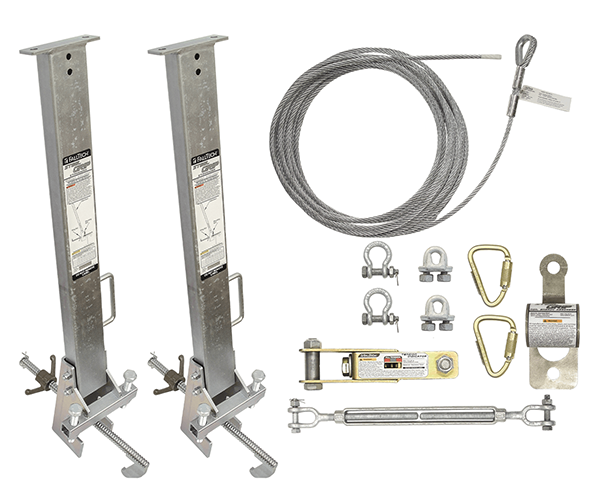

  • Complete 60' Single-span Temporary Cable HLL System
  • Includes two I-beam stanchions with 4" to 12" clamping range.
  • 3/8" galvanized steel cable with one-end terminated and thimbled
  • Features 1 stainless steel coil energy absorber and 2 connecting carabiners
  • In-line tension indicator included with 2 galvanized steel shackles
  • System also includes wire rope clips and tensioning turnbuckle
  • Cable HLL System meets OSHA 1926.502 and 1910.140 regulations

MATERIAL SPECIFICATIONS

Cable3/8" galvanized steel; 5,000 lb min. static strength
StanchionsPlated carbon steel post, base and clamp; 8,000 lb min. static strength
CarabinersPlated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Static Strength: 5,000 lb min.
OSHA User Capacity310 lb max. per user; 2 users max. per single span

SIZES & PART NUMBERS

  • 6036012 - 60'
  • 6038012 - 80'
  • 60310012 - 100'

COMPLIANT WITH:

Cable HLL System meets OSHA 1926.502 and 1910.140 regulations
