REUTLINGER CABLE HOLDER W/RING & SIDE EXIT WIRE - DOUGHTY ENGINEERING

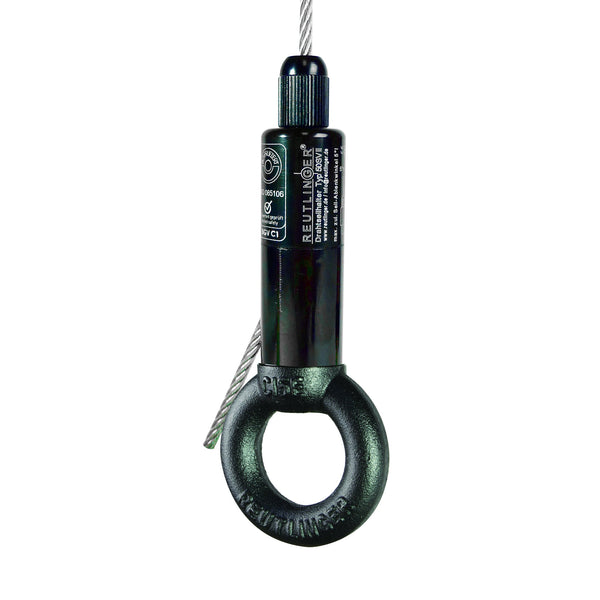

This is a range of Reutlinger Cable Holders fitted with a ring, featuring the side-exited cable. This selection is used to hold static loads from wire rope without tools or damaging the steel rope. It comes in 3 sizes - type 50 SVIII, type 66 SVIII and type 80 SVIII.

These cable holders have been specifically designed for applications which demand compliance with the accident prevention rules contained in “BGV C1”, such as stage productions; fair booths, etc.

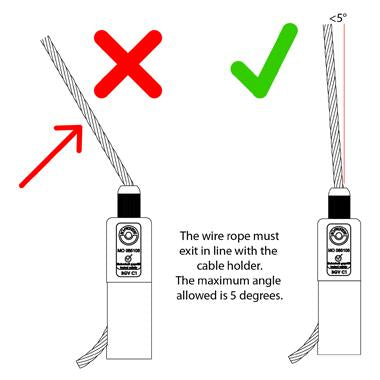

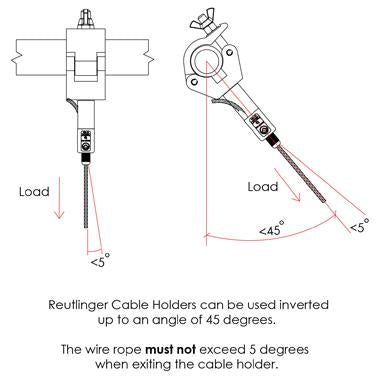

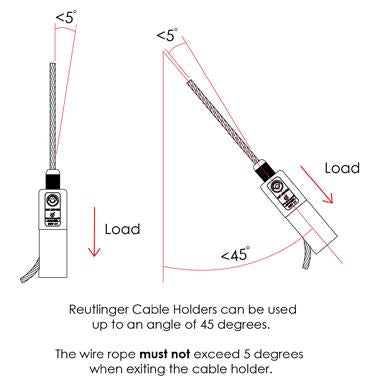

NOTE: When exiting the holder, the rope is not allowed to exceed 5 degrees. For any inquiries, please contact us via chat.

Type	SWL	Weight
Type 50 (⌀1.2'' Ring)	0.16'' Wire - 176.37 lbs 0.2'' Wire - 286.6 lbs	0.57 lbs
Type 66 (⌀1.4'' Ring)	0.24'' Wire - 418.9 lbs 0.25'' Wire - 463.0 lbs	0.57 lbs
Type 80 (⌀1.6'' Ring)	0.24'' Wire - 418.9 lbs 0.31'' Wire - 727.5 lbs	1.94 lbs

Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls.

Quality and safety are key issues for Doughty. As a member of PLASA (Professional Light and Sound Association) and ESTA (Entertainment Services and Technology Association), Doughty adheres strictly to the standards of trading expected.
