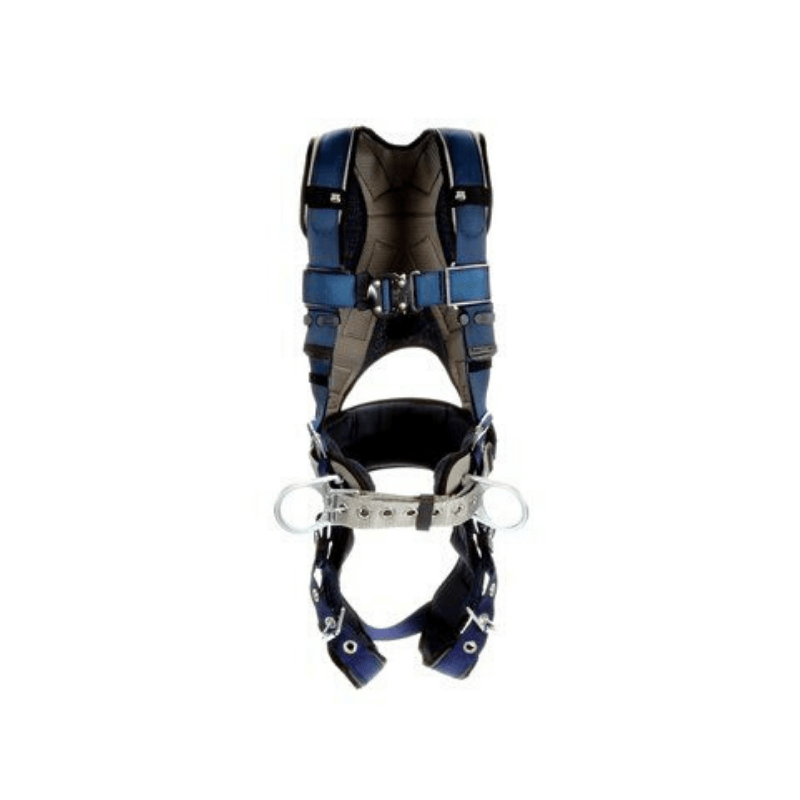

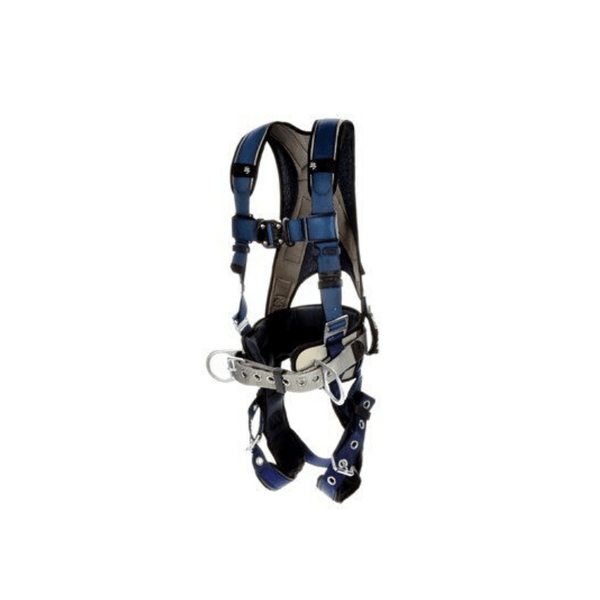

3M™ DBI-SALA® ExoFit™ Plus Comfort Construction Style Positioning Harness

The 3M™ DBI-SALA® ExoFit™ Plus Comfort Construction Style Positioning Harness has a versatile design that is perfect for those working in the construction industry. This comfortable and light wearing safety harness is easy to don, thanks to its vest-style design. It features built-in shoulder, back and leg padding for enhanced worker comfort, quick connect chest connection, tongue buckle leg connections, body belt/hip pad with side D-rings as well as a fixed dorsal D-ring that helps to maintain proper dorsal D-ring positioning, reducing the need for wearers to readjust the harness during the workday. This harness also includes an integrated easy-link SRL adapter that allows users to quickly and easily connect and disconnect their personal SRL. The ExoFit™ Plus Comfort Construction Style Positioning Harness includes all of the comfort and performance that hard working professionals can rely on for their positioning needs.

For a full list of ExoFit™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit™

ExoFit™ harnesses are the original comfort fit harness from 3M™ DBI-SALA® that innovated the industry. The single-piece design dons without tangling and provides comfortable security for the long day ahead. Workers all over the globe trust the ExoFit™ brand for unbeatable safety features that are packed into the most comfortable harnesses available.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1140078 - 6.47 lbs
  1140079 - 6.67 lbs
  1140080 - 6.81 lbs
  1140081 - 7.03 lbs
  1140082 - 7.27 lbs
  1140083 - 7.44 lbs
• Tensile Strength: 3600 lbs / ANSI
• Body Belt: Yes
• Subpelvic Strap: Yes
• Chest Buckle Type: Quick Connect
• Torso Buckle Type: Parachute
• Leg Buckle Type: Tongue Buckle
• Chest Buckle Material: Zinc Plated Steel
• Torso Buckle Material: Zinc Plated Steel
• Leg Buckle Material: Zinc Plated Steel
• Padding Location: Back, Hip, Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, Sub Applications
• Standards: ANSI Z359.11, OSHA 1910.140, OSHA 1926.502

FEATURES

• Integrated easy-link SRL adapter lets you quickly and easily connect and disconnect personal SRLs
• Fixed dorsal D-ring helps maintain proper dorsal D-ring position and reduces the need to readjust during the workday
• Shoulder, back and leg padding for enhanced worker comfort
• Body belt/hip pad with side D-rings
• Tongue Buckle leg connection
• Quick Connect chest connection
• Reflective material enhances visibility in low-light conditions

RESOURCES

• 9 Things to Consider When Looking for a Safety Harness

Catalog

3M™ DBI-SALA® ExoFit™ Plus Full Body Harness Catalog

Instructions

Exofit & Exofit XP Full Body Harness Instructions

Certificates

1140078: Declaration of Conformity

1140079: Declaration of Conformity

1140080: Declaration of Conformity

1140081: Declaration of Conformity

1140082: Declaration of Conformity

1140083: Declaration of Conformity
