3M™ DBI-SALA® ExoFit NEX™ Oil & Gas Vest-Style Harness

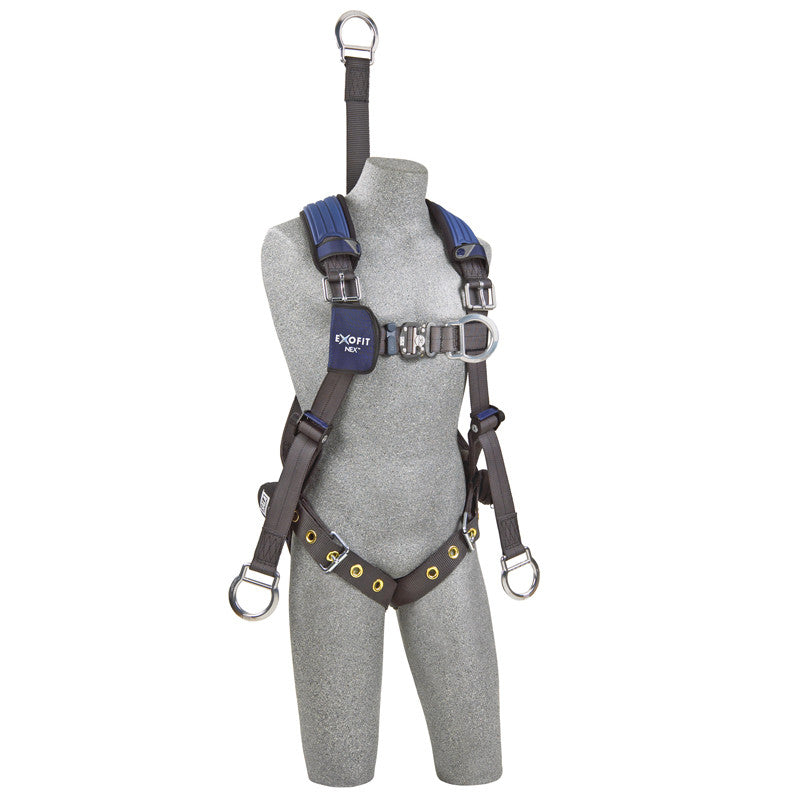

The 3M™ DBI-SALA® ExoFit NEX™ Oil & Gas Vest-Style Harness is specifically designed for on and offshore drilling markets. This comfortable and light wearing safety harness is easy to don, thanks to its vest-style design. It features hybrid shoulder, back and leg comfort padding, an 18'' lightweight aluminum back D-ring extension, lightweight aluminum front and lifting D-rings, an integrated derrick belt (1003221) connection, tongue buckle leg straps, protective shoulder caps, a revolving vertical torso buckle as well as integrated trauma straps. The ExoFit Nex™ Oil & Gas Vest-Style Harness combines industry-first innovations that are standard in the NEX family with the additional features to suit oil and gas workers.

For a full list of ExoFit NEX™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit NEX™

ExoFit NEX™ harnesses are the most advanced safety harnesses in the industry. These fall protection products are the result of years of experience and ongoing research to identify the best materials and features for the worker’s benefit. These harnesses are manufactured to be lightweight with speed and efficiency as product requirements. ExoFit NEX™ full-body harnesses provide the freedom and confidence for workers to perform at their maximum potential.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1113285 - 6.2 lbs
  1113286 - 6.3 lbs
  1113287 - 6.4 lbs
  1113288 - 6.5 lbs
• Body Belt: No
• Buckle Type: Tongue Buckle
• Chest Buckle Material: Zinc Plated Steel
• Torso Buckle Material: Zinc Plated Steel
• Padding Location: Shoulder/Back and Leg
• iSafe Equipped: Yes
• Recommended Industry: Oil & Gas
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.3, ANSI Z359.4, OSHA 1910.66, OSHA 1926.502

FEATURES

• Hybrid shoulder, back and leg comfort padding
• 18" lightweight aluminum back D-ring extension
• Lightweight aluminum front D-ring
• Lightweight aluminum lifting D-rings
• Integrated derrick belt connection (use with 1003221 derrick belt - must order separately)
• Tongue buckle leg straps
• Protective shoulder caps
• Repel™ webbing
• Built-in lanyard keepers
• Revolving vertical torso buckle
• Impact Indicator
• Integrated trauma straps
• Built-in reflective materials
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)

RESOURCES

• 9 Things to Consider When Looking for a Safety Harness

Catalog

3M™ DBI-SALA Fall Protection Full Line Catalog

Instructions

ExoFit NEX™ Full Body Harness Instructions
