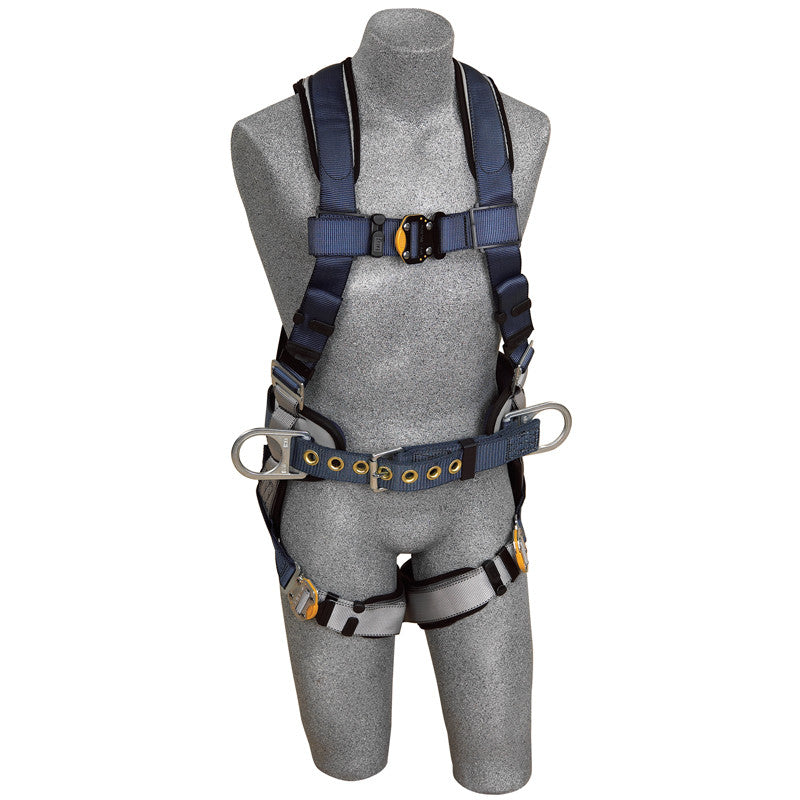

3M™ DBI-SALA® ExoFit™ Construction Style Positioning Harness

The 3M™ DBI-SALA® ExoFit™ Construction Style Positioning Harness delivers the ultimate in comfort. Its design incorporates a single piece of material that wraps around you in the shape of an X, for the ultimate in no tangle donning and comfortable security. It features built-in shoulder, leg and hip padding ensuring that the harness doesn't slip whilst being worn and includes breathable lining that will keep you comfortable and dry all day. This harness also features a back D-ring, quick connect chest and leg straps as well as parachute torso adjusters. The ExoFit™ Construction Style Positioning Harness includes great features for the hardest working construction professionals.

For a full list of ExoFit™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit™

ExoFit™ harnesses are the original comfort fit harness from 3M™ DBI-SALA® that innovated the industry. The single-piece design dons without tangling and provides comfortable security for the long day ahead. Workers all over the globe trust the ExoFit™ brand for unbeatable safety features that are packed into the most comfortable harnesses available.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1108500 - 5.8 lbs
  1108501 - 5.87 lbs
  1108502 - 6.2 lbs
  1108507 - 6.25 lbs
• Tensile Strength: 6000 lbs
• Body Belt: Yes
• Subpelvic Strap: Yes
• Buckle Type: Quick Connect
• Chest Buckle Material: Zinc Plated Steel
• Leg Buckle Material: Zinc Plated Steel
• Padding Location: Back/Hip, Shoulder/Back and Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.3, ANSI Z359.4, OSHA 1910.66, OSHA 1926.502

FEATURES

• Built-in shoulder, back and leg comfort padding
• Back D-ring
• Body belt/hip pad with side D-rings
• Quick connect chest and leg straps
• Soft, lightweight webbing
• Anti-tear ballistic nylon
• Built-in reflective piping
• Parachute torso adjusters
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)

RESOURCES

• 9 Things to Consider When Looking for a Safety Harness

Catalog

3M™ DBI-SALA Fall Protection Full Line Catalog

Instructions

Exofit & Exofit XP Full Body Harness Instructions

Certificates

1108500: Certificate of Compliance, Declaration of Conformity

1108501: Certificate of Compliance, Declaration of Conformity

1108502: Certificate of Compliance, Declaration of Conformity

1108507: Certificate of Compliance, Declaration of Conformity
